Rev9 Hyper Street II Coilover Spring+Shock for Elantra 17-19, Forte 19+ *Torsion

SKU:

Collections: Suspension

Product type: Coilovers

Vendor: Rev9

$497.00

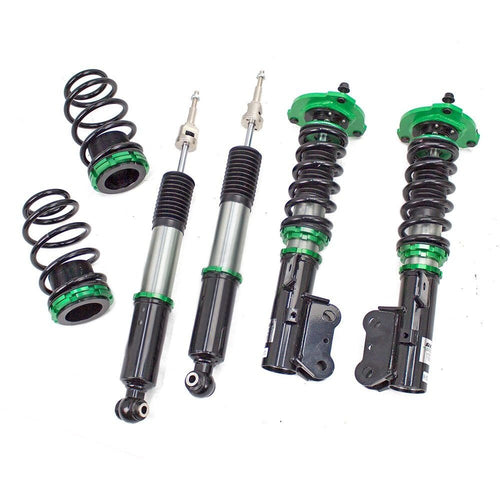

New in Box: Rev9 Hyper Street II Coilover

Application:
Hyundai Elantra (AD) 17-19
Kia Forte Sedan 19-20

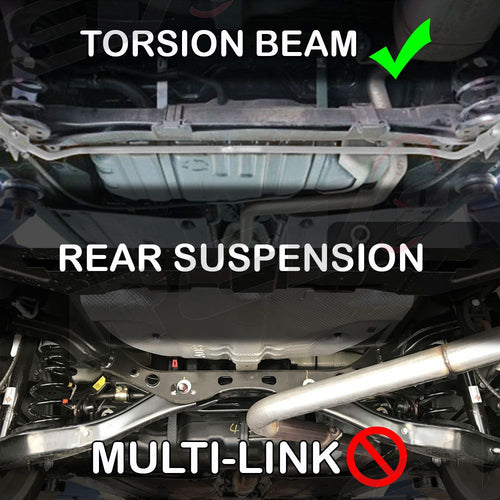

Note: For model has Rear Torsion Beam setup

Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment
  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height


Damping Levels 32 Levels
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 3 kg/mm (168 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 190 mm
Camber Plate(Front) Yes, With Pillow Ball
Camber Plate(Rear) No
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
