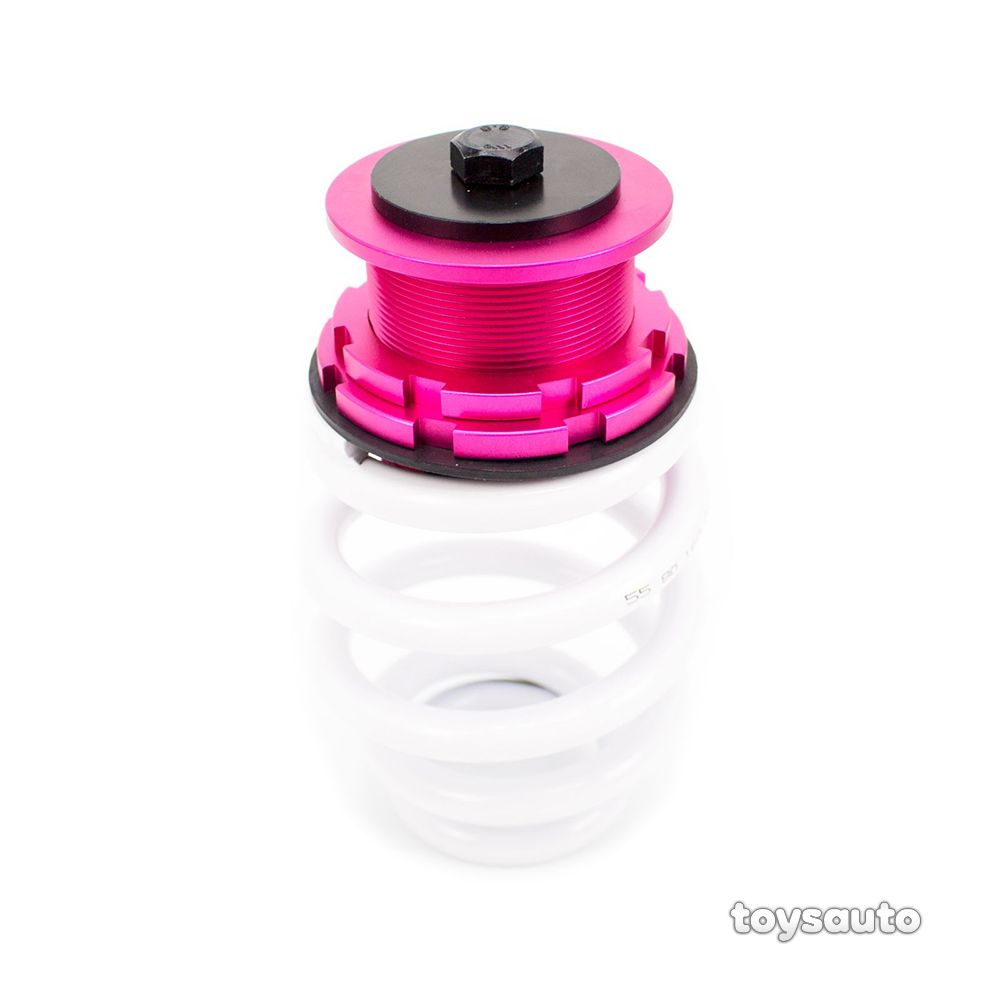

Godspeed MonoSS Coilovers - BMW E46 M3 01-06
Godspeed MonoSS Coilovers - BMW E46 M3 01-06
SKU:MSS0165
Out of stock
New in Box: Godspeed MONO-SS Coilover
Application:
BMW E46 M3 01-06
Note: Will not fit regular 3 series
Godspeed Project's MonoSS is our entry level performance adjustable coilover suspension kits. These coilovers are designed to be a streetable race built coilover at an affordable price. It features larger 52mm stainless steel monotube shock with 16 levels dampening adjustability with a performance internal piston providing maximum damper response. Paired With cold-wound springs made from high strength SAE9252 steel to optimize the balance between performance and comfort. Using race quality shock oil, You can expect exceptional damper performance at any temperature on and off the track. The top of the shock is attached to the car using a high quality top hat that features a high performance Japanese KOYO 6204Z bearing pillow ball mount (when applicable). The bottom shock brackets are made out of a T7075 forged aluminum or carbon steel brackets for lighter weight without sacrificing durability which also includes brake line brackets (when applicable). With MonoSS coilovers, you can assure to experience daily driven comfort with track performance.
FEATURES:
- 52mm Mono Tube Shock With 16 Levels Of Dampening Adjustment
- Front Camber Plate With Pillowball Mount For Camber Adjustment(Where Applicable)
- Koyo Japan 6204Z Bearing To Ensure Smooth Piston Travel
- Stainless Steel Shock Body With Race Grade Shock Oil
- Light Weight Aluminum And Steel Alloy Accesories
- Independent Ride Height And Spring Tension Preload Adjustments
- 1 Year Warranty from Date of Purchase
SPECIAL NOTES |
Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
DAMPENING LEVELS |
16 Levels |
HEIGHT ADJUSTMENT |
Yes |
SPRING RATE(FRONT) |
10 kg/mm |
SPRING RATE(REAR) |
10 kg/mm |
SPRING LENGTH(FRONT) |
170 mm |
SPRING LENGTH(REAR) |
160 mm |
CAMBER PLATE(FRONT) |
Yes, With Pillow Ball |
CAMBER PLATE(REAR) |
No |
SPRING INNER DIAMETER(FRONT) |
62 mm (2.44 inch) |
SPRING INNER DIAMETER(REAR) |
55-80 mm (2.17-3.15 inch) |
