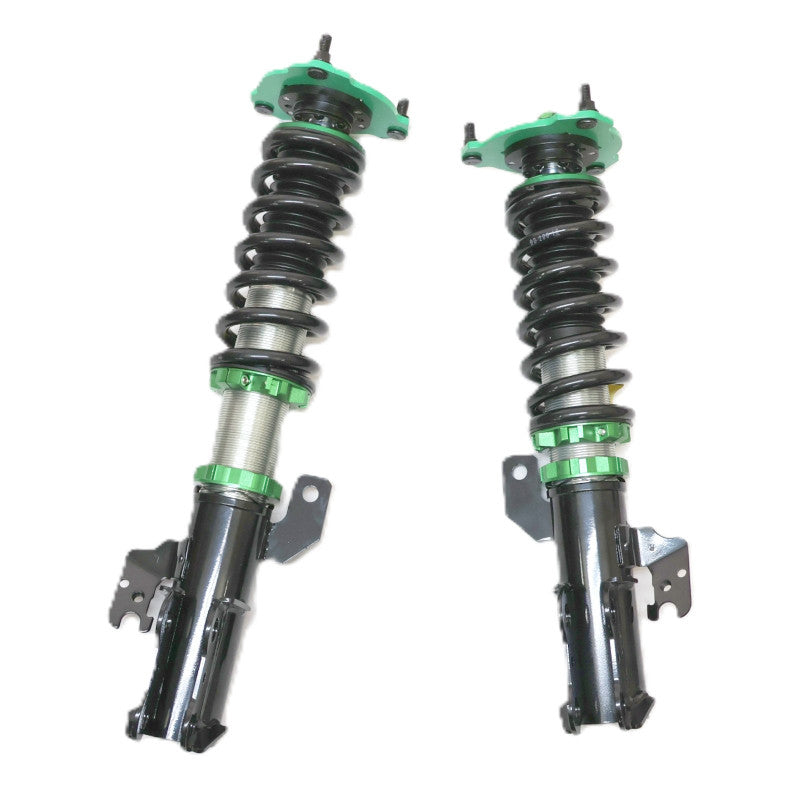

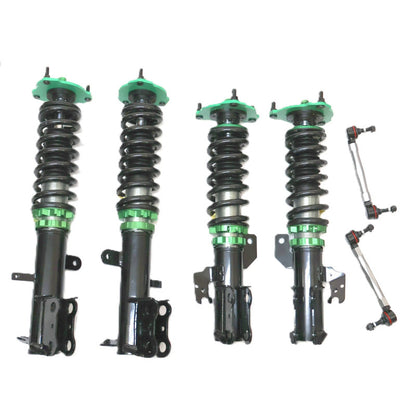

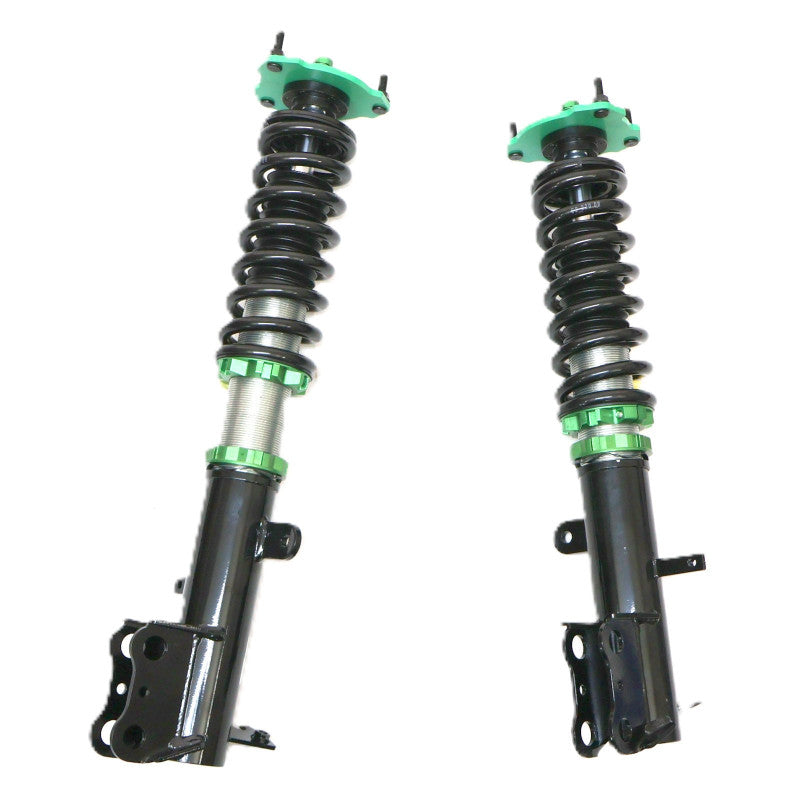

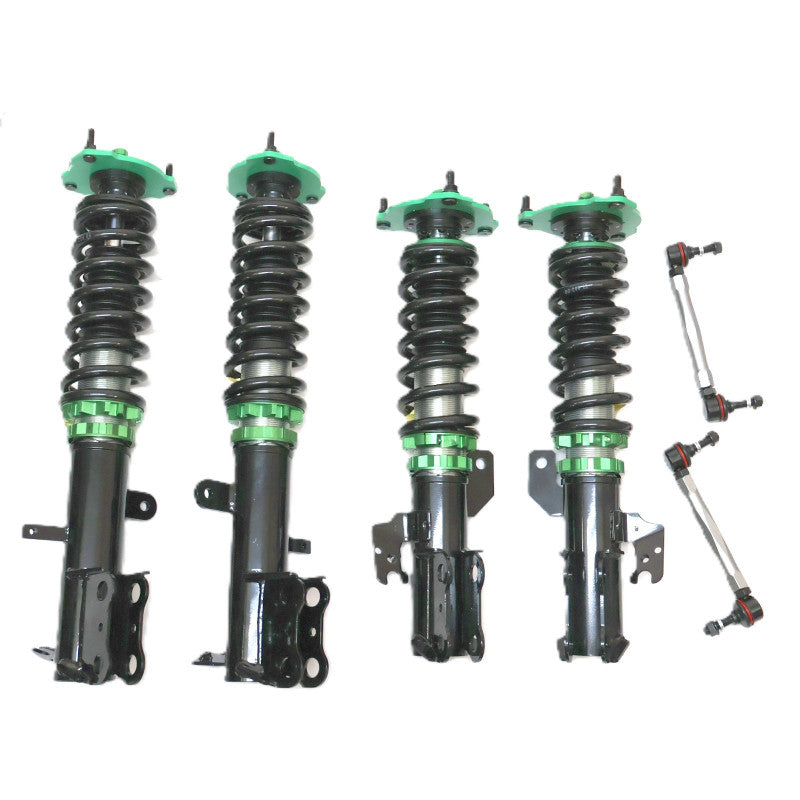

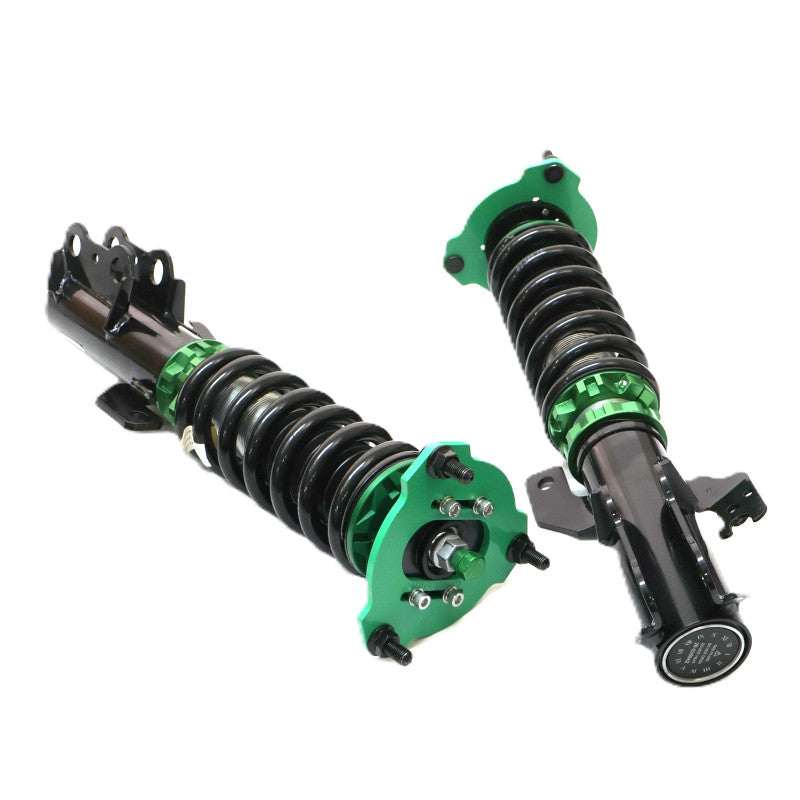

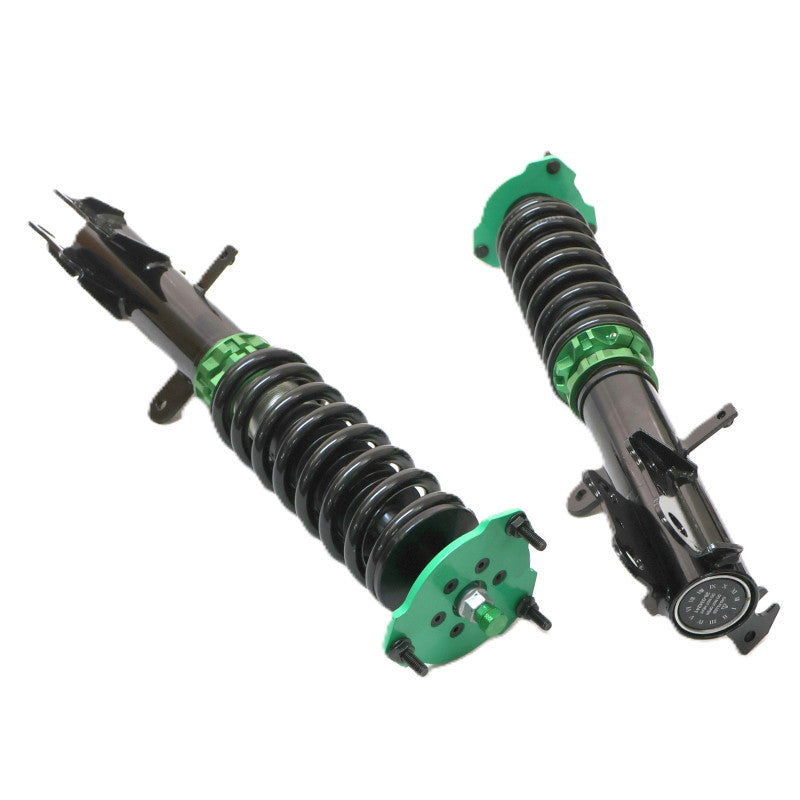

Rev9 Hyper Street II Coilover - *AWD Venza 09-16 highlander 08-13 (Copy)

Rev9 Hyper Street II Coilover - *AWD Venza 09-16 highlander 08-13 (Copy)

R9-HS2-194

In stock

$757.00 CAD
$1,081.00 CAD $757.00 CAD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

New in Box: Rev9 Hyper Street II Coilover

Application:
Toyota Venza AWD 09-16
Toyota highlander AWD 08-13

Note - Will not fit FWD

Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment
  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height

Specification

Front

Rear

Top Mount

Yes, Pillow Ball w/ Camber Plate

Yes, Pillow Ball Type

Spring Rate

10 kg/mm (560 lbs/inch)

8 kg/mm (448lbs/inch)

Spring Length

200 mm (7.87 inch)

220 mm (8.66 inch)

Spring Inner Diameter

62 mm (2.44 inch)

62 mm (2.44 inch)



Rev9 Coilover Adjustment Quick Guide:
