Rev9 Hyper Street II Coilover *FWD* Corolla 09-19, Matrix 09-14, Vibe 09-10

Rev9 Hyper Street II Coilover *FWD* Corolla 09-19, Matrix 09-14, Vibe 09-10

SKU:R9-HS2-064

In stock

Regular price $777.00 CAD
Regular price $914.00 CAD Sale price $777.00 CAD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

New in Box: Rev9 Hyper Street II Coilover

Application:
Pontiac Vibe FWD 09-10
Toyota Corolla 14-19 Sedan FWD
Toyota Corolla 09-13 FWD
Toyota Matrix 09-14 FWD

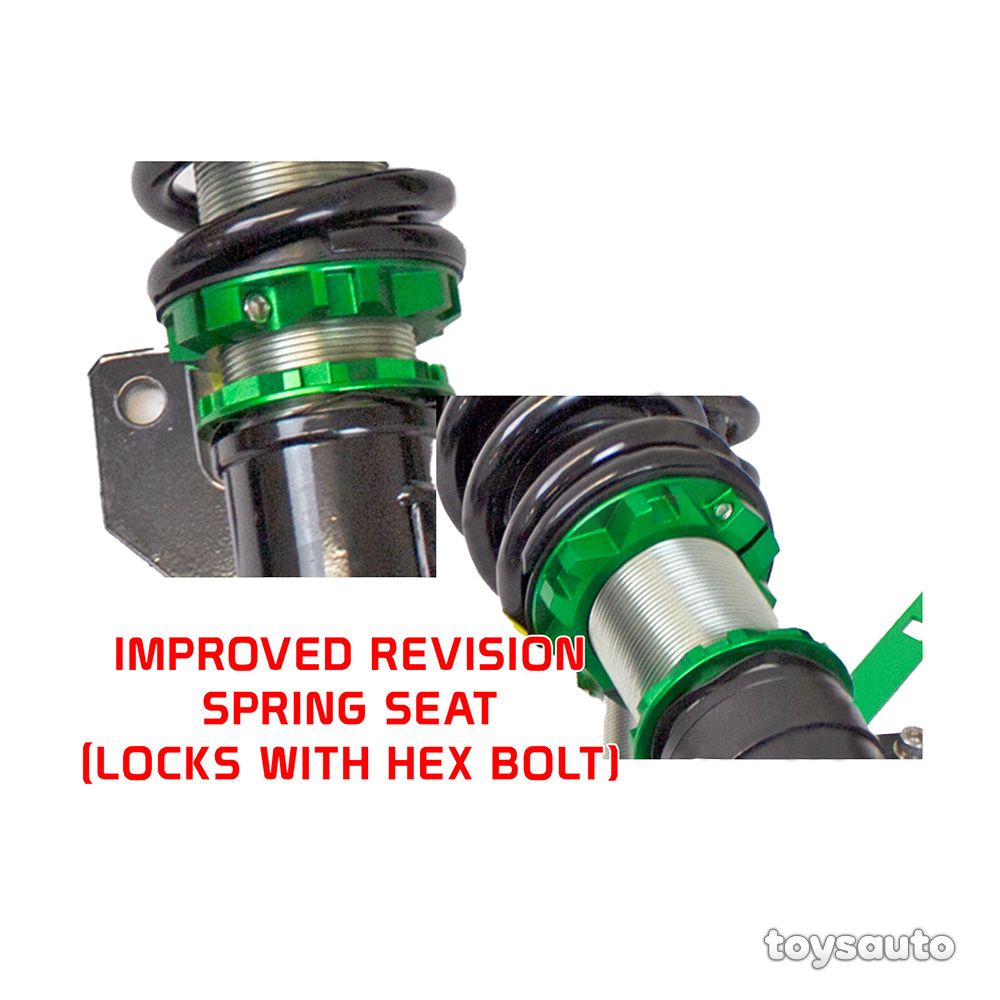

Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment
  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height


Special Notes XRS Models comes with independent suspension in the rear, these coilovers will not work.
Damping Levels 32 Levels
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 5 kg/mm (280 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 180 mm
Camber Plate(Front) Yes, With Pillow Ball
Camber Plate(Rear) No
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62-67 mm (2.44-2.64 inch)

Rev9 Coilover Adjustment Quick Guide:
