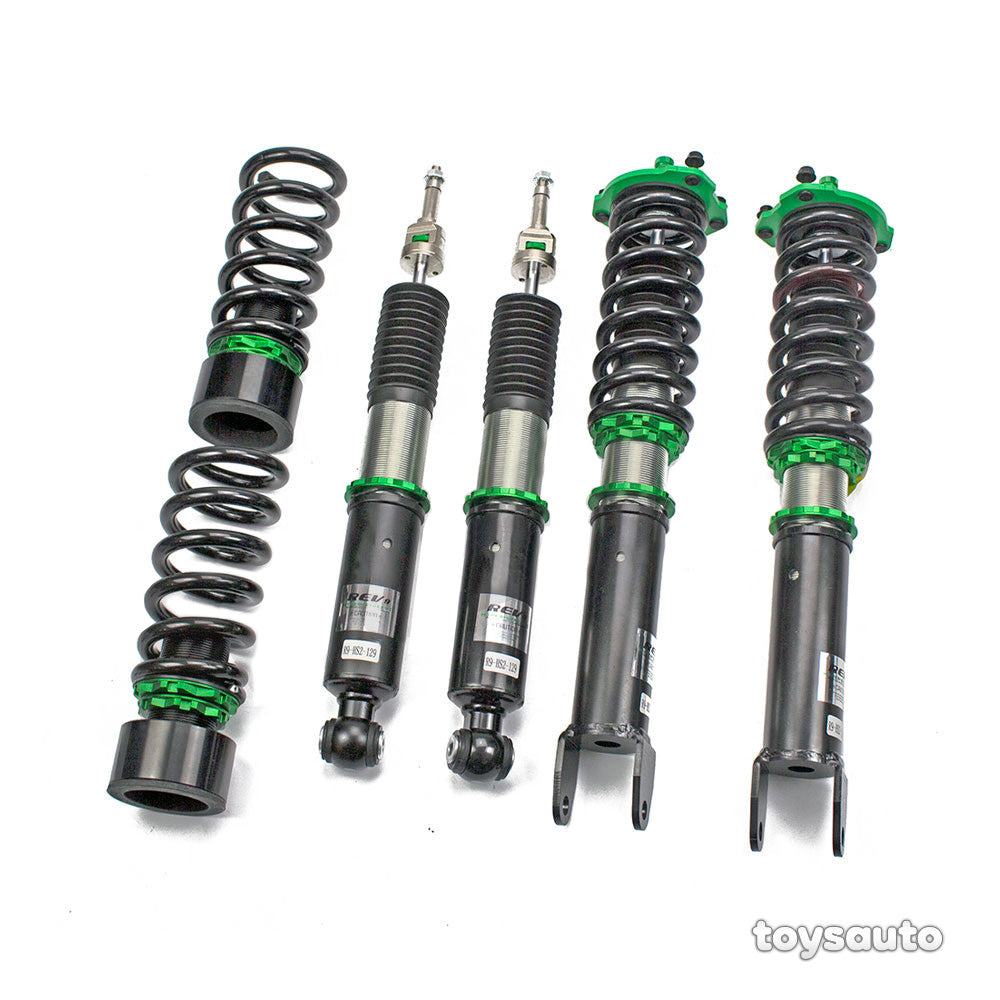

Rev9 Hyper Street II Coilover Shock - RWD Sedan W211 E320 E350 E500 E55 E63 03-09

Rev9 Hyper Street II Coilover Shock - RWD Sedan W211 E320 E350 E500 E55 E63 03-09

R9-HS2-129_1

In stock

$751.00 CAD
$751.00 CAD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

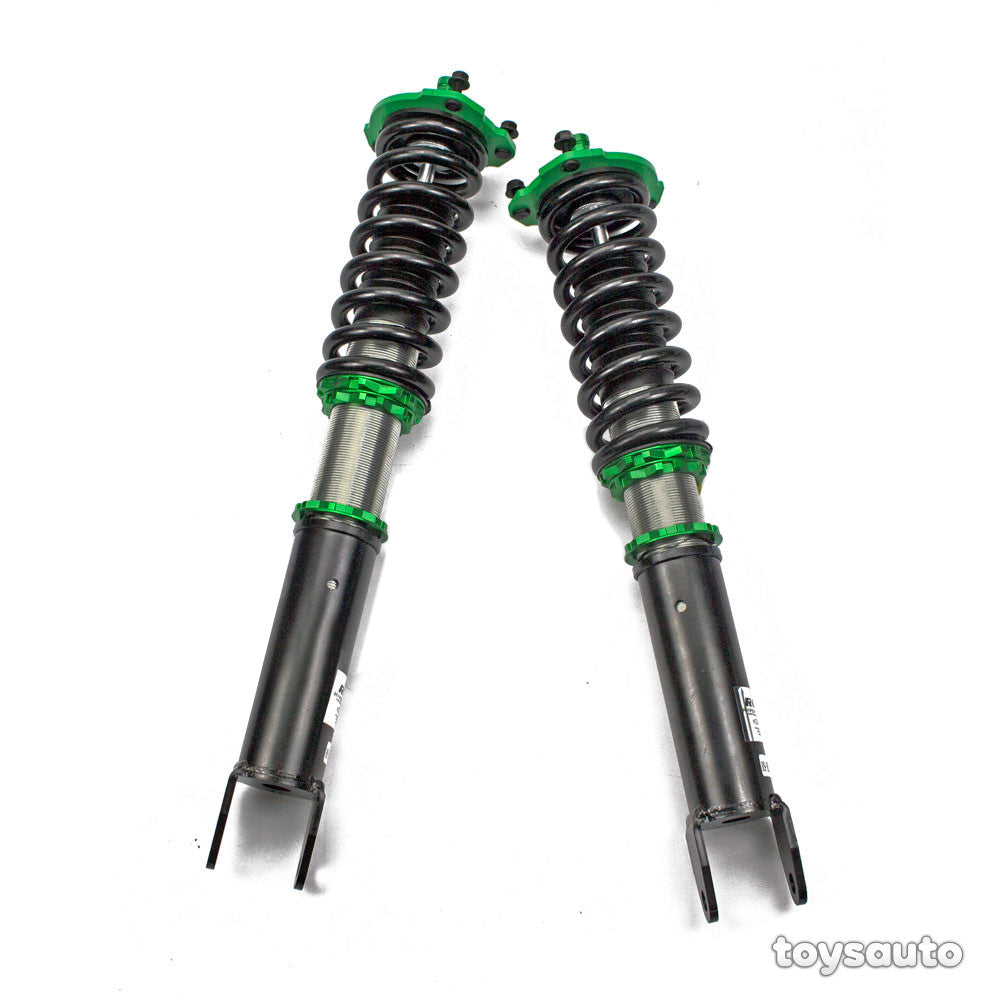

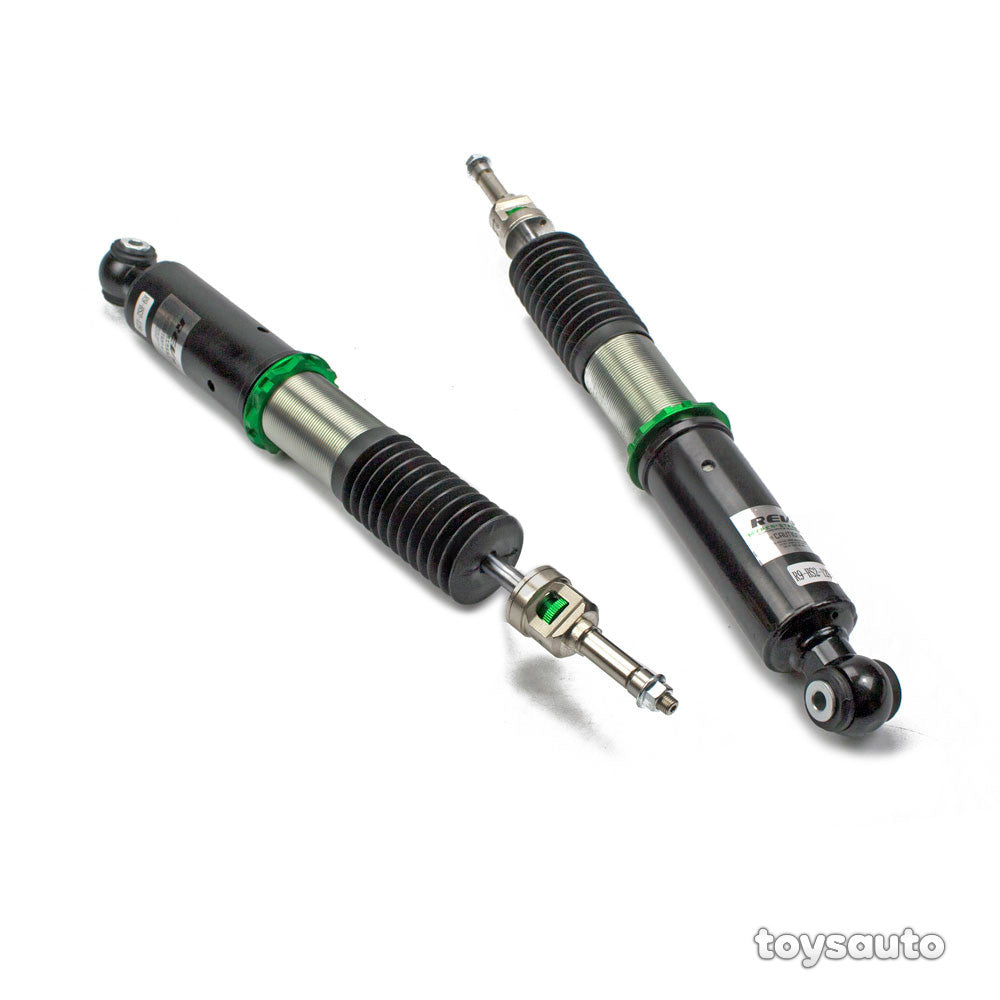

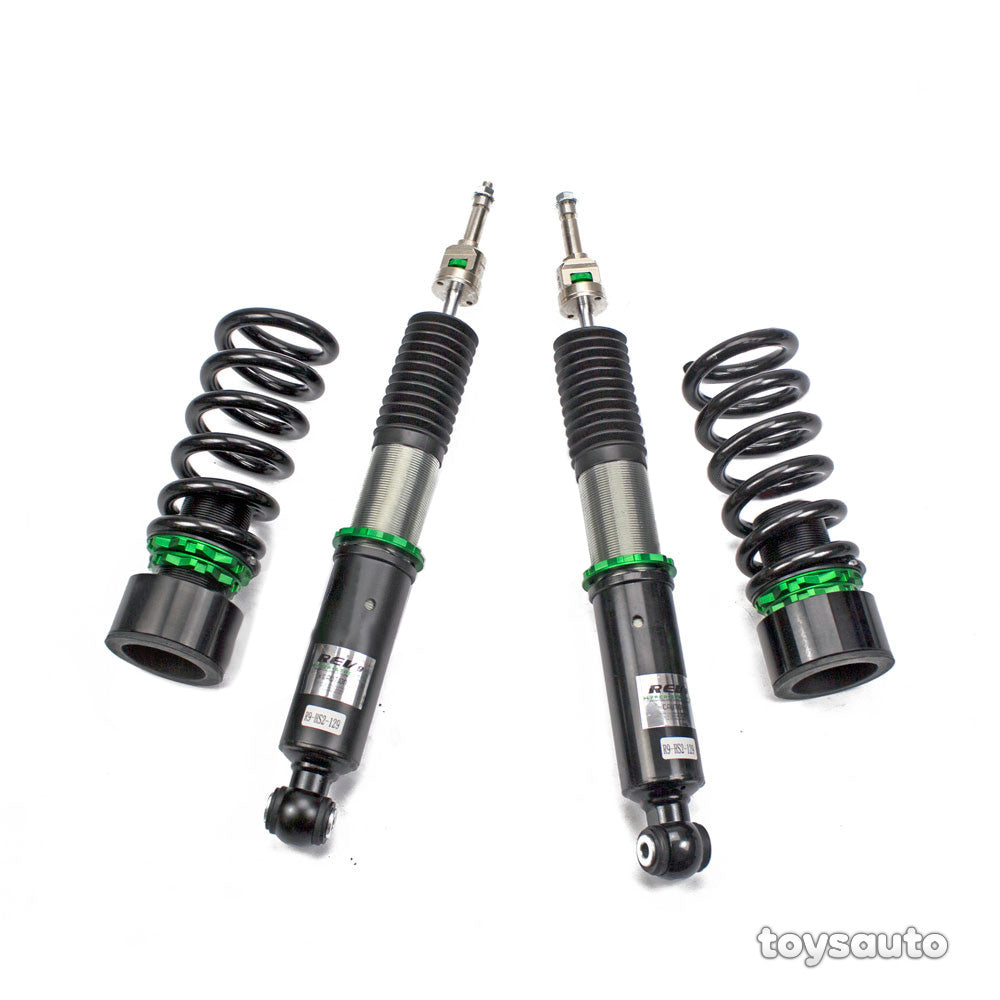

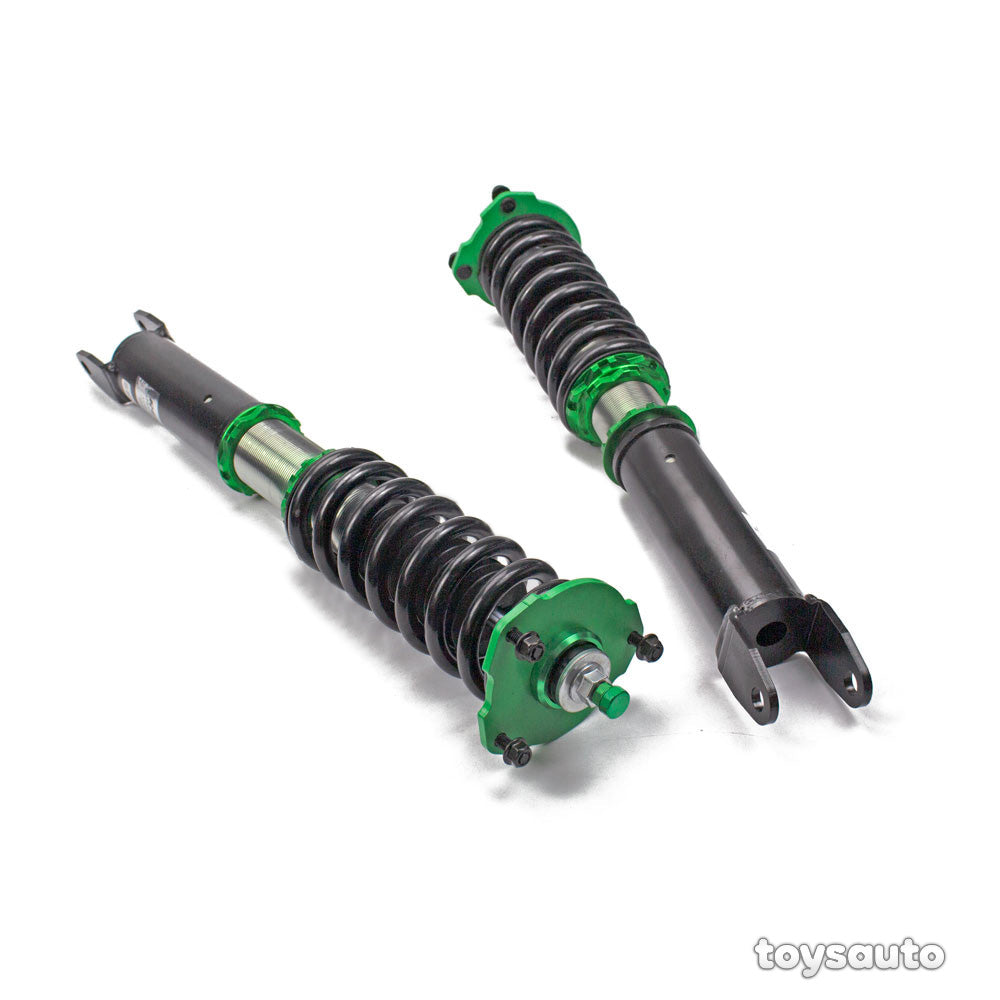

New in Box: Rev9 Hyper Street II Coilover

Rev9 Hyper Street II Coilover

Application:
Mercedes-Benz E-Class W211 *RWD Sedan 03-09

Note: Will not fit Wagon

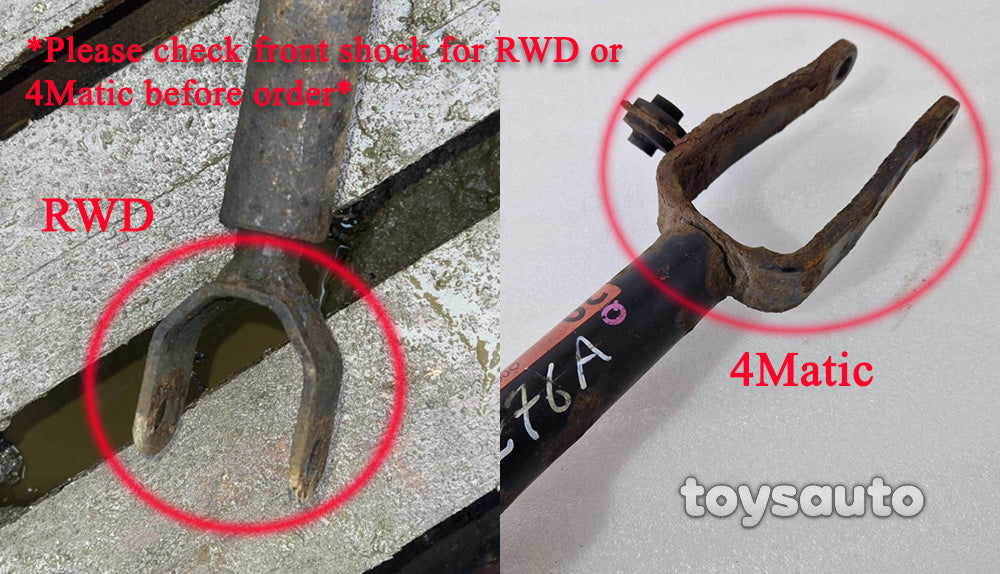

Note: Will not fit 4matic

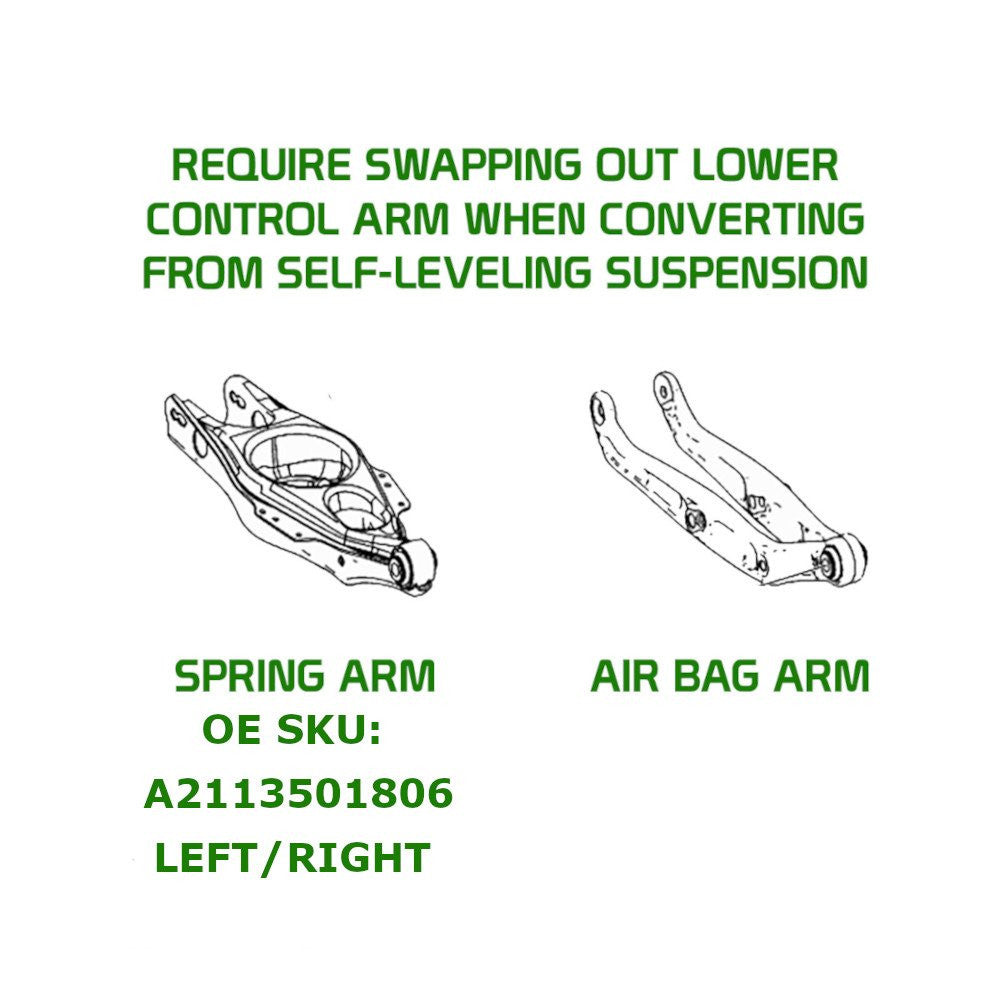

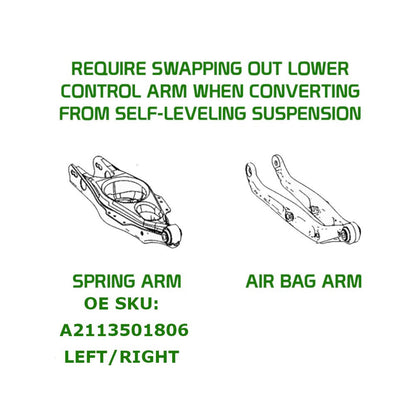

Note: Airmatic require spring arm A2113501806 to install - Reprogramming ECU required to turn off service light

Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment

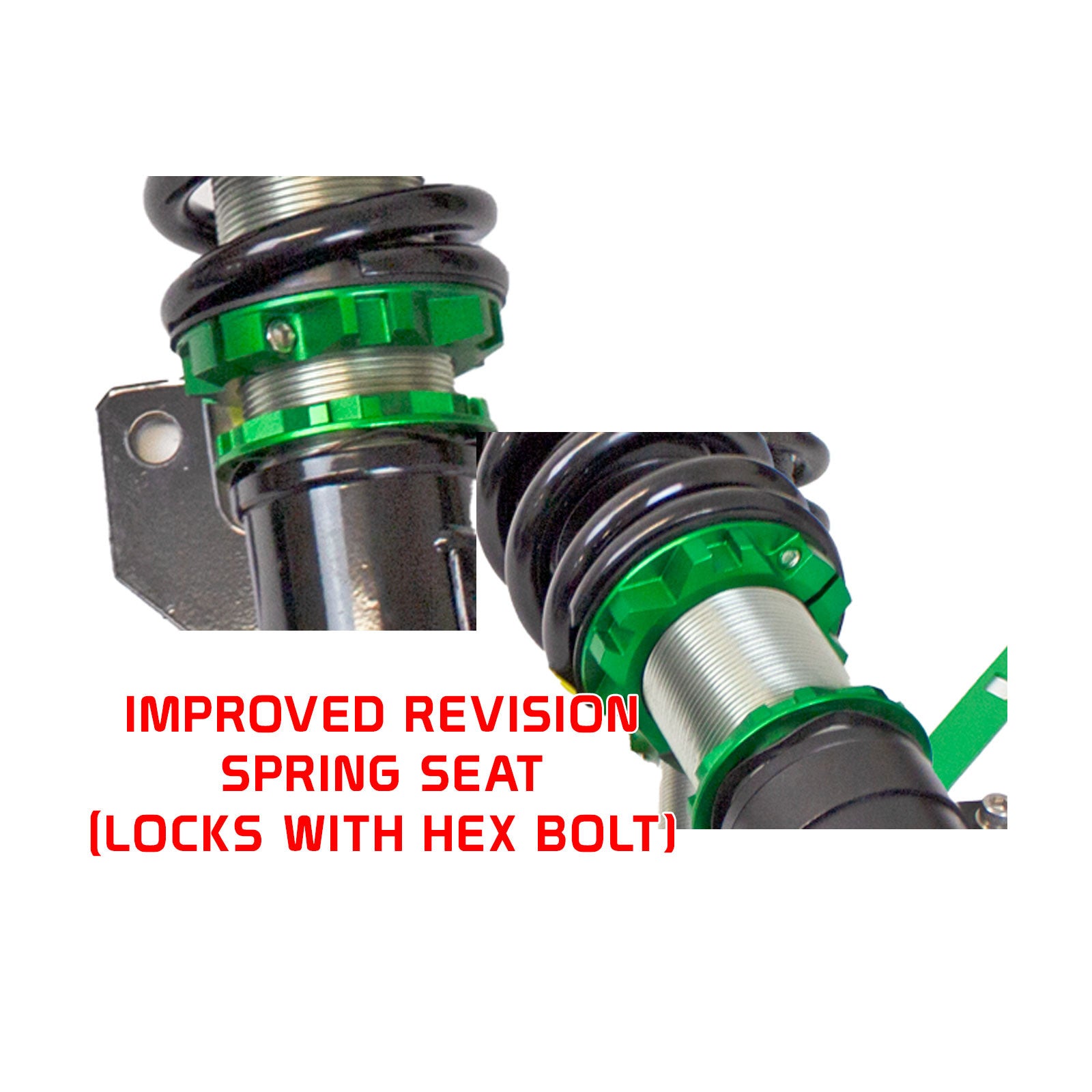

  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height


Damping Levels 32 Levels
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 11 kg/mm (616 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Pillow Ball w/Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)


Rev9 Coilover Adjustment Quick Guide:
