• Rev9 Hyper Street II Coilover Shock+Spring for Audi A4 S4 B9 A5 S5 18-20 w/o EDC - E Auto Inc.
1 7

Rev9

Rev9 Hyper Street II Coilover Shock - Audi A5 Quattro Sportback F5 18-23

Rev9 Hyper Street II Coilover Shock - Audi A5 Quattro Sportback F5 18-23

R9-HS2-090_2

In stock

$752.00 CAD
$1,073.00 CAD $752.00 CAD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

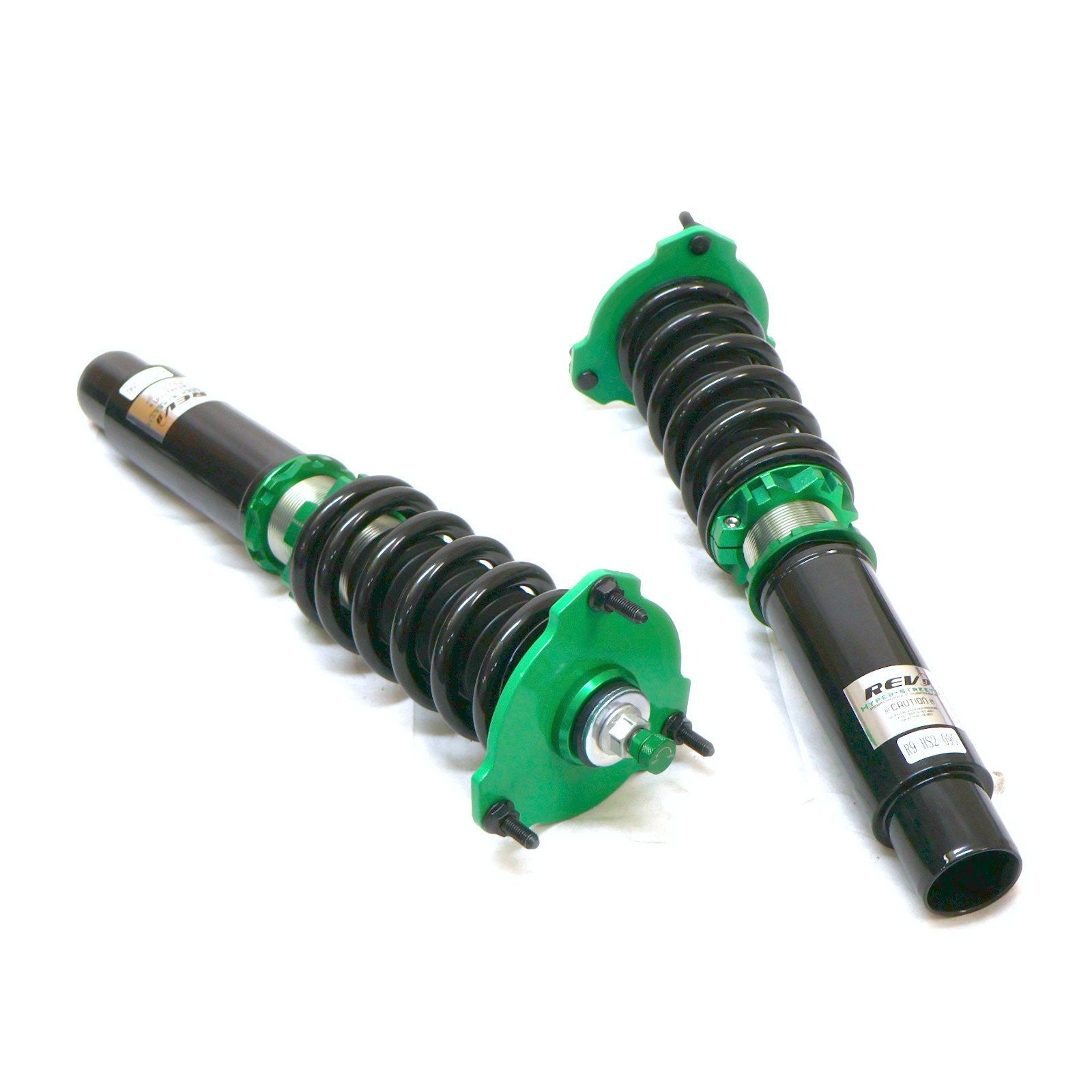

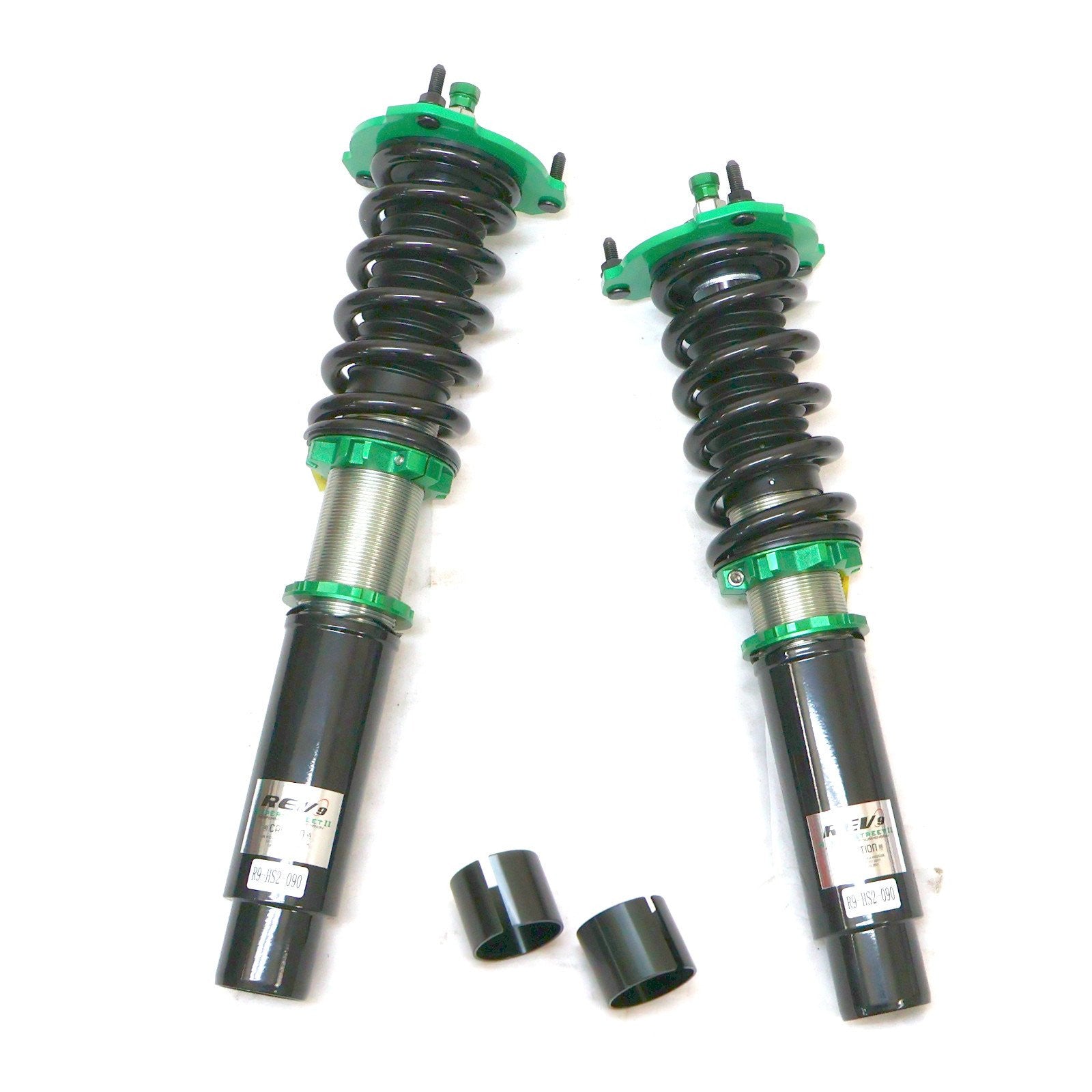

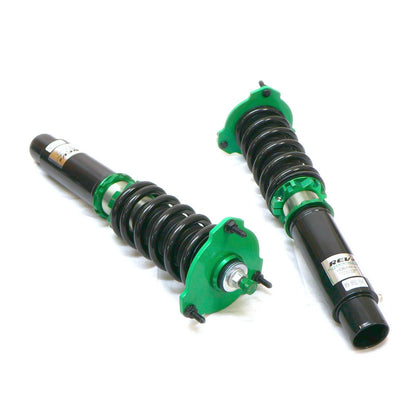

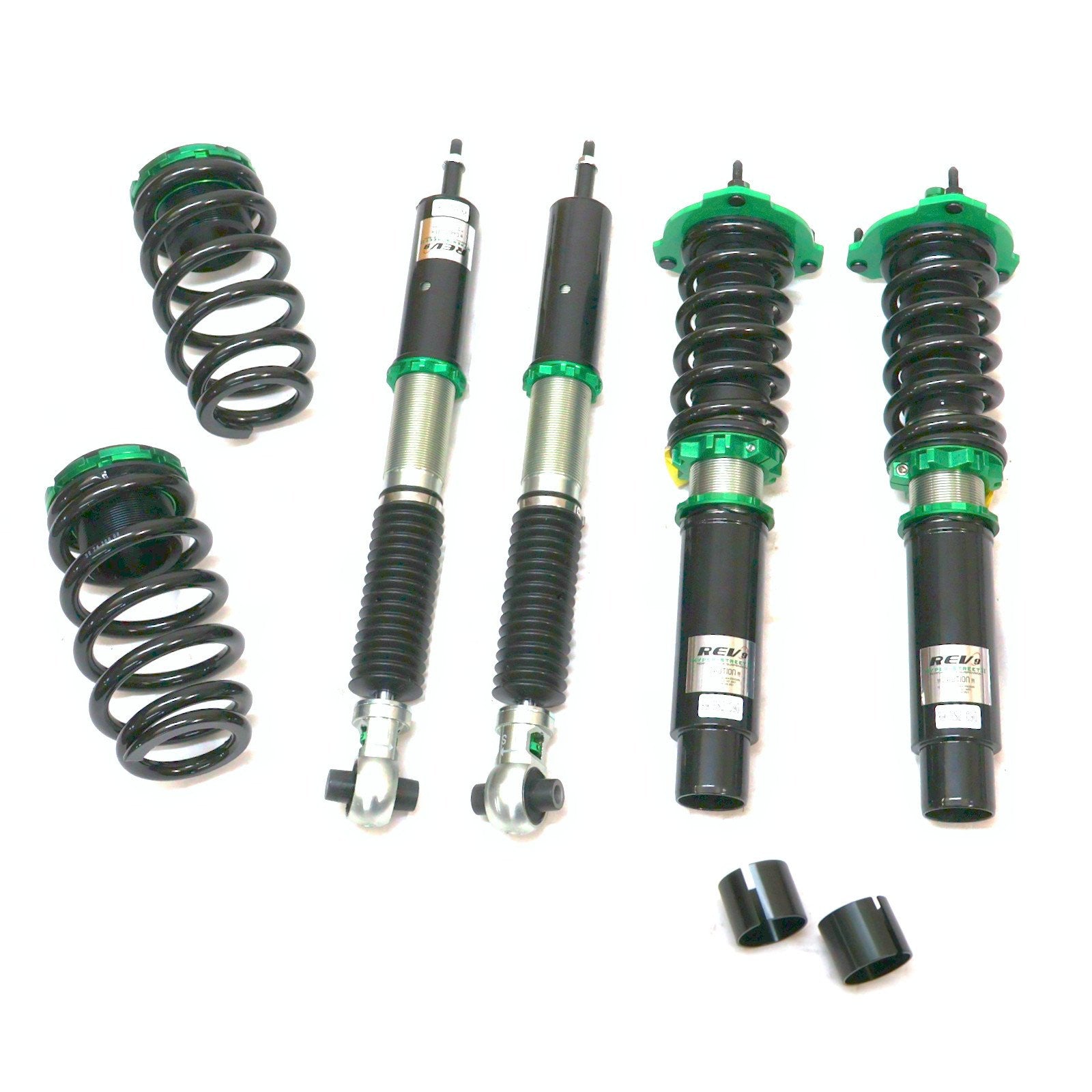

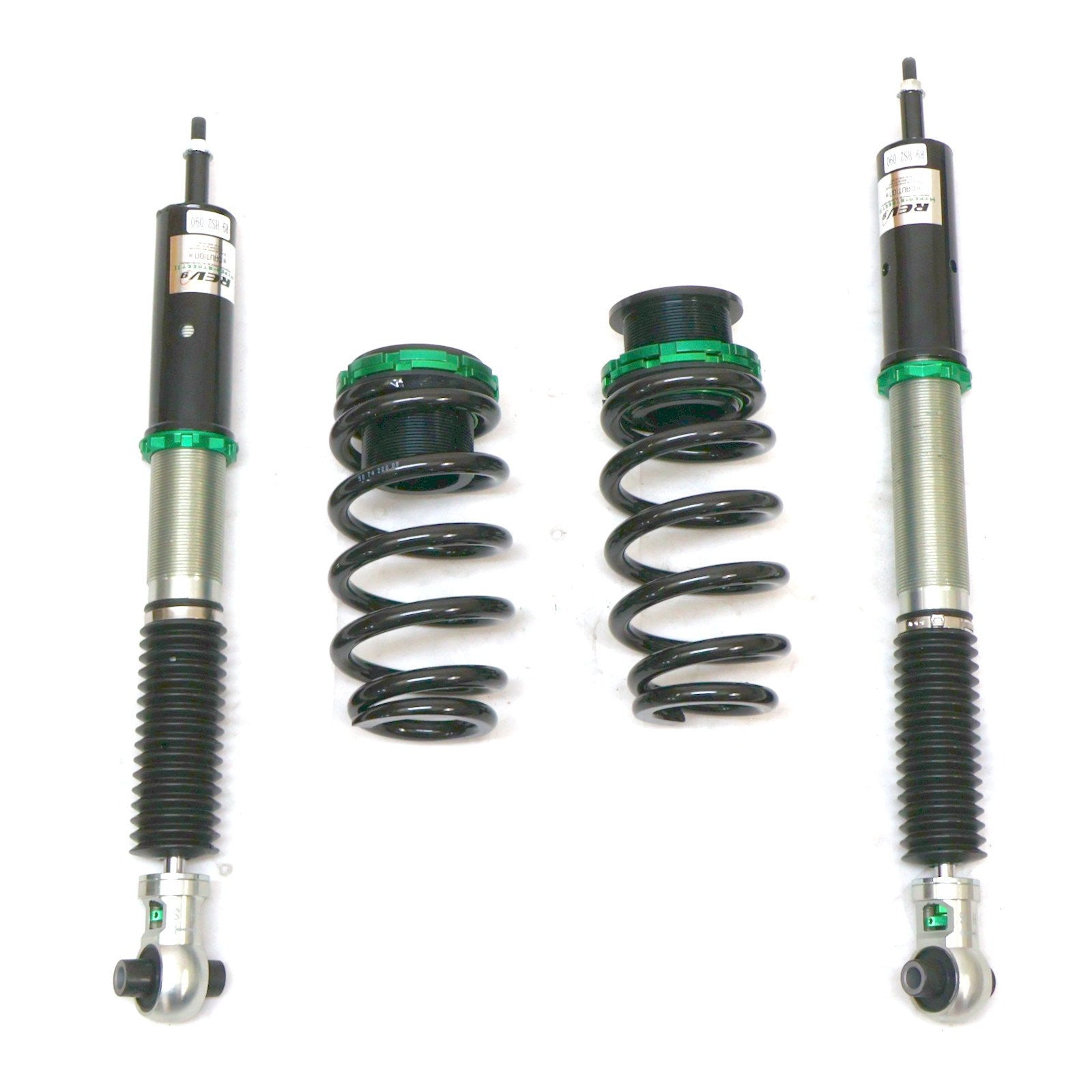

New in Box: Rev9 Hyper Street II Coilover

Rev9 Hyper Street II Coilover

Application: *48 mm Front Lower Mount with 53mm Adapter*
Audi A4/A4 Quattro/S4 18-25
Audi A5/A5 Sportsback/S5 18-23



Note: Will not fit Electronic Damper Control



Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment
  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height


Specification Front Rear

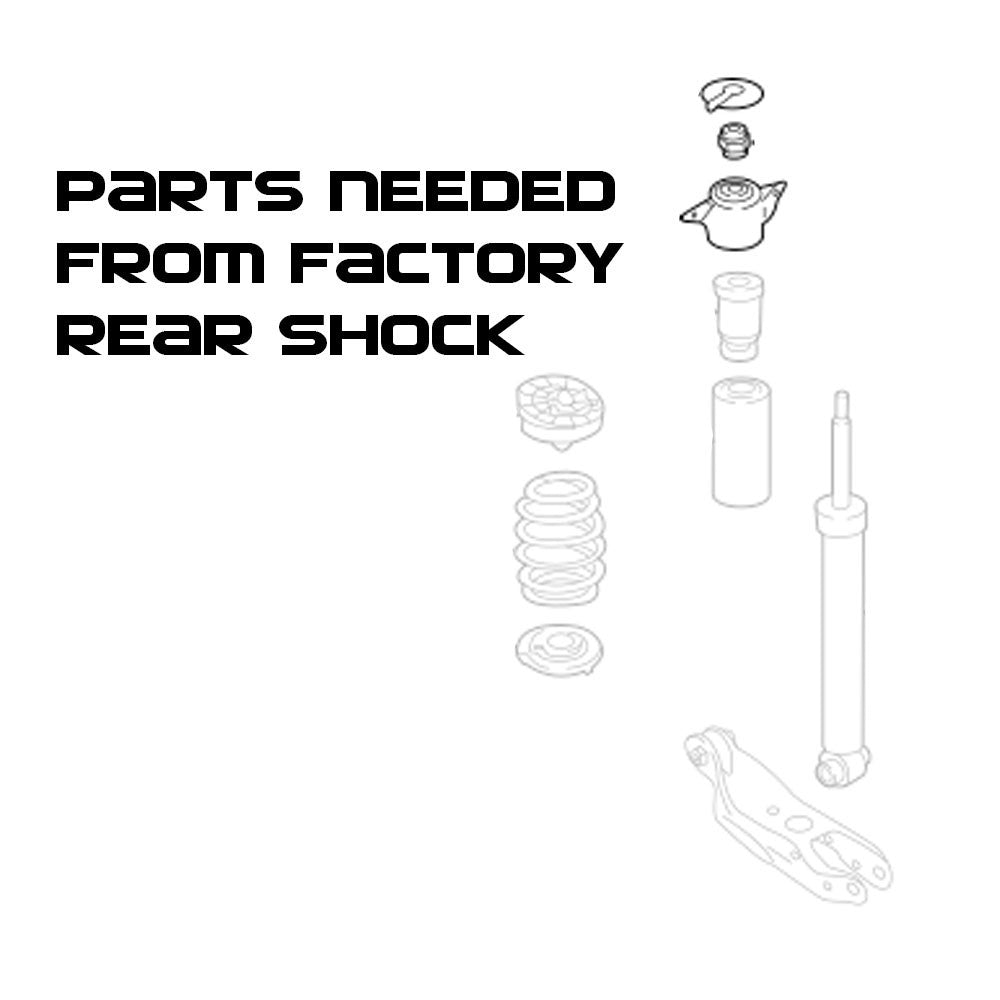

Top Mount Yes, Standard Type No, Reuse Factory
Spring Rate 10 kg/mm (560 lbs/inch) 5 kg/mm (280 lbs/inch)
Spring Length 180 mm (7.09 inch) 200 mm (7.87 inch)
Spring Inner Diameter 62 mm (2.44 inch) 62 mm (2.44 inch)
Damping Levels 32-Level

Rev9 Coilover Adjustment Quick Guide:
