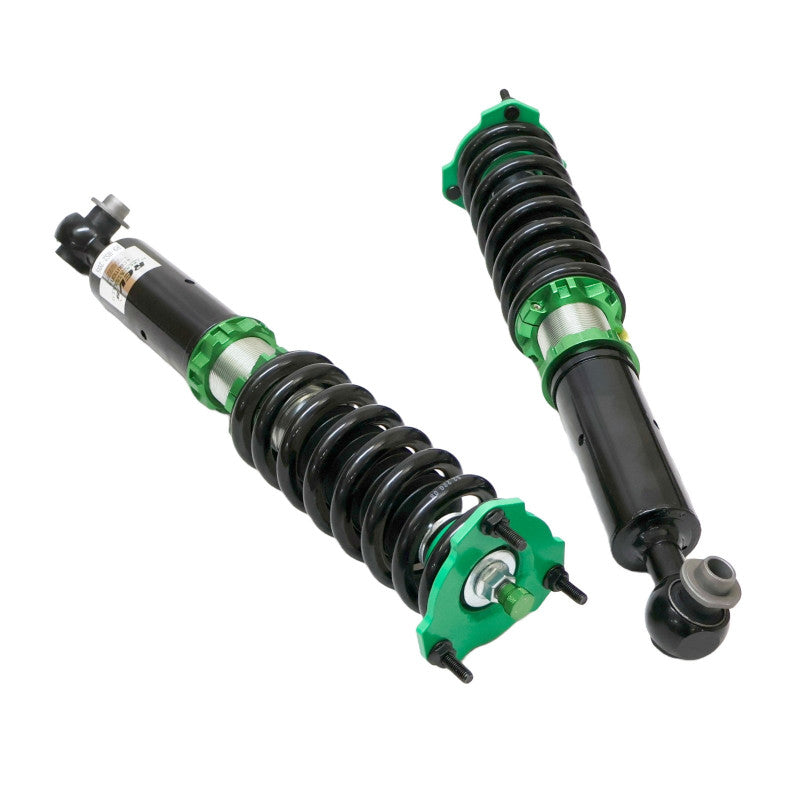

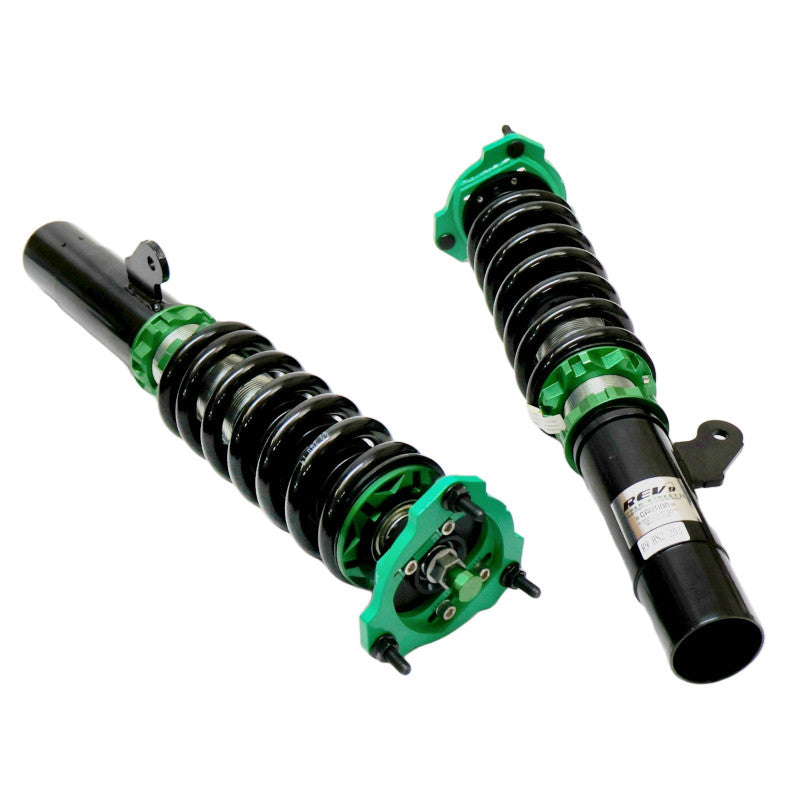

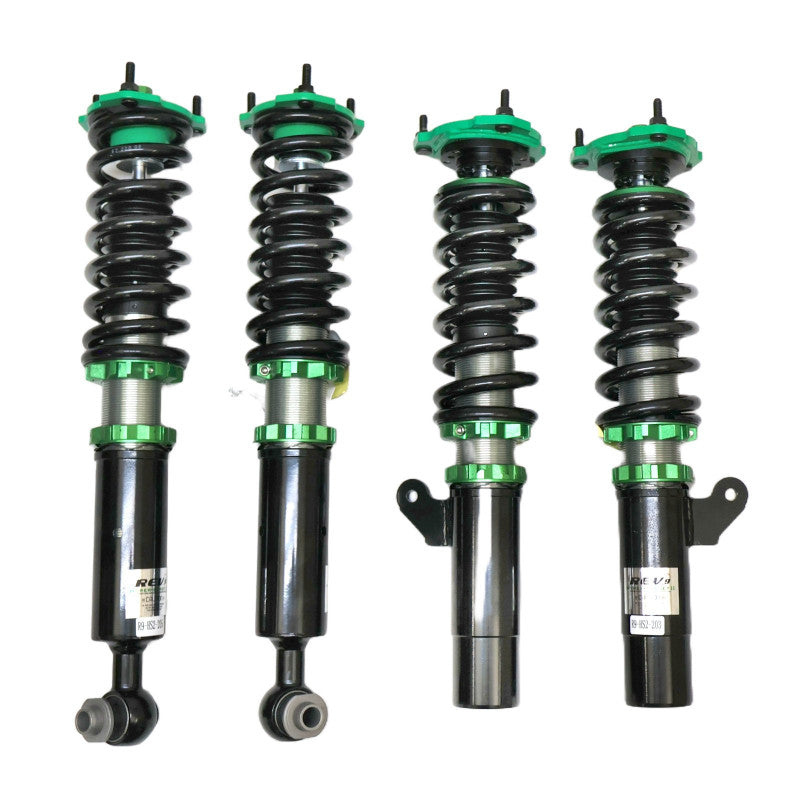

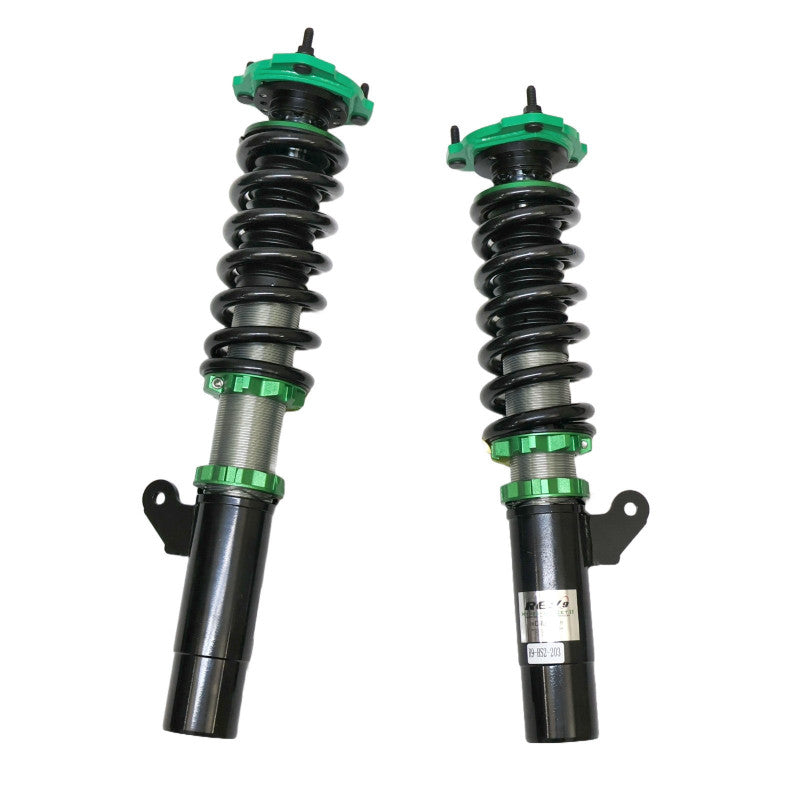

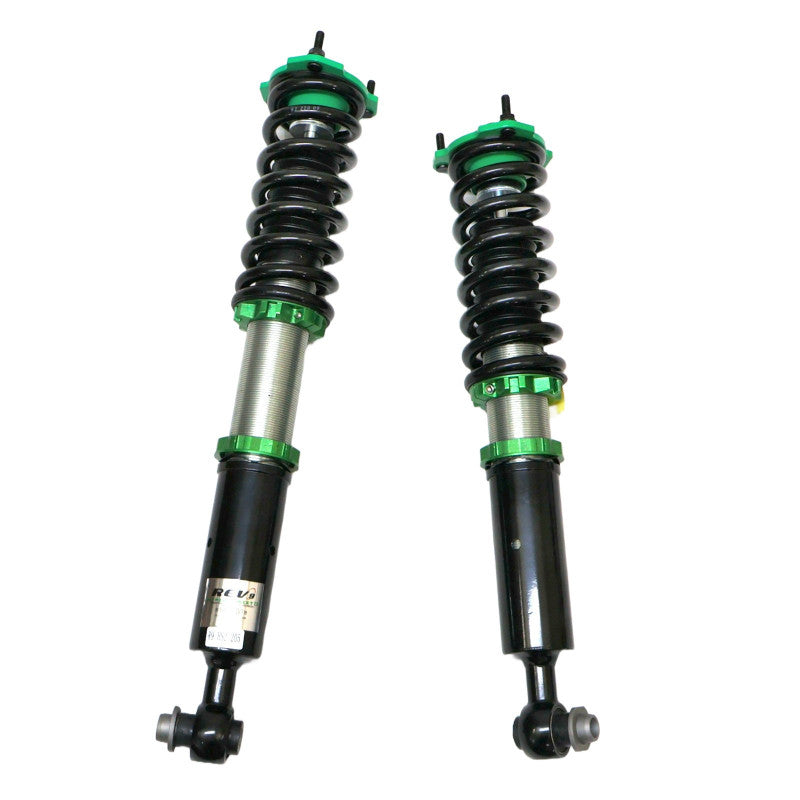

Rev9 Hyper Street II Coilover Shock for AWD Sedan BMW E60 525xi 528xi 535xi 04-10

Rev9 Hyper Street II Coilover Shock for AWD Sedan BMW E60 525xi 528xi 535xi 04-10

R9-HS2-203

In stock

$762.00 CAD
$1,089.00 CAD $762.00 CAD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

New in box: Coilover Lowering Kit (Not allow set factory height)

Application:
BMW 5 series Sedan AWD E60 04-10

Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment
  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height

Specification

Front

Rear

Top Mount

Yes, Pillow Ball w/ Camber Plate

Yes, Standard Type

Spring Rate

14 kg/mm (784 lbs/inch)

8 kg/mm (448 lbs/inch)

Spring Length

200 mm (7.87 inch)

220 mm (8.66 inch)

Spring Inner Diameter

62 mm (2.44 inch)

62 mm (2.44 inch)



Rev9 Coilover Adjustment Quick Guide:
