Rev9

Rev9 Hyper Street II Coilover Shock for BMW E63 E64 645ci 650i M6 04-10

Rev9 Hyper Street II Coilover Shock for BMW E63 E64 645ci 650i M6 04-10

R9-HS2-223

In stock

$751.00 CAD
$1,073.00 CAD $751.00 CAD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

New in box: Coilover Lowering Kit (Not allow set factory height)

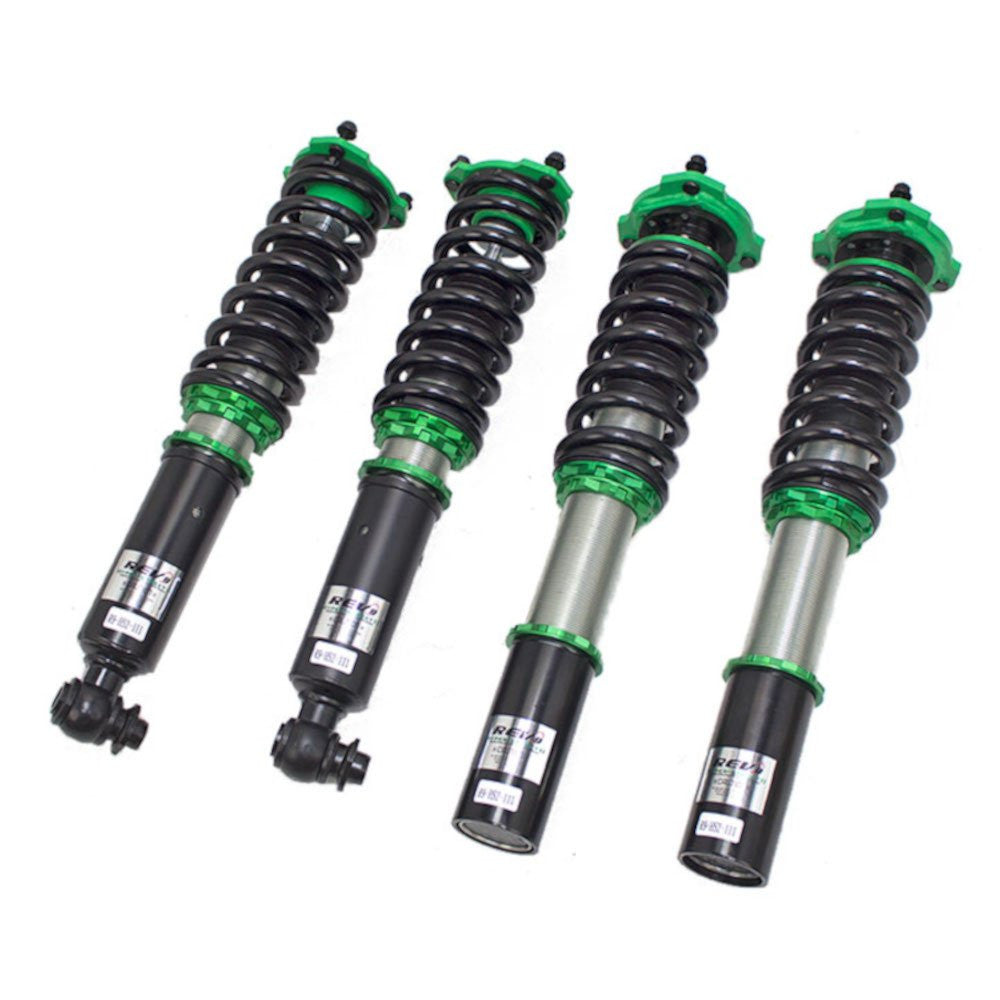

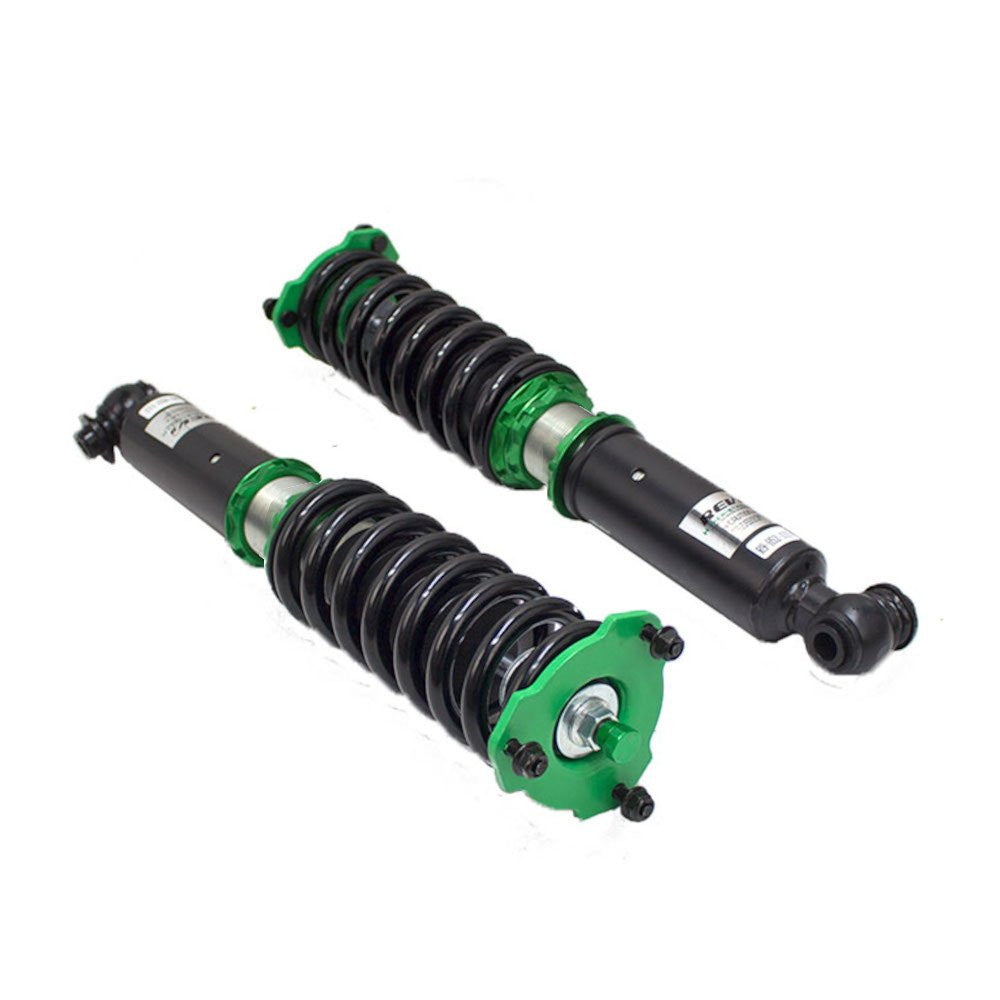

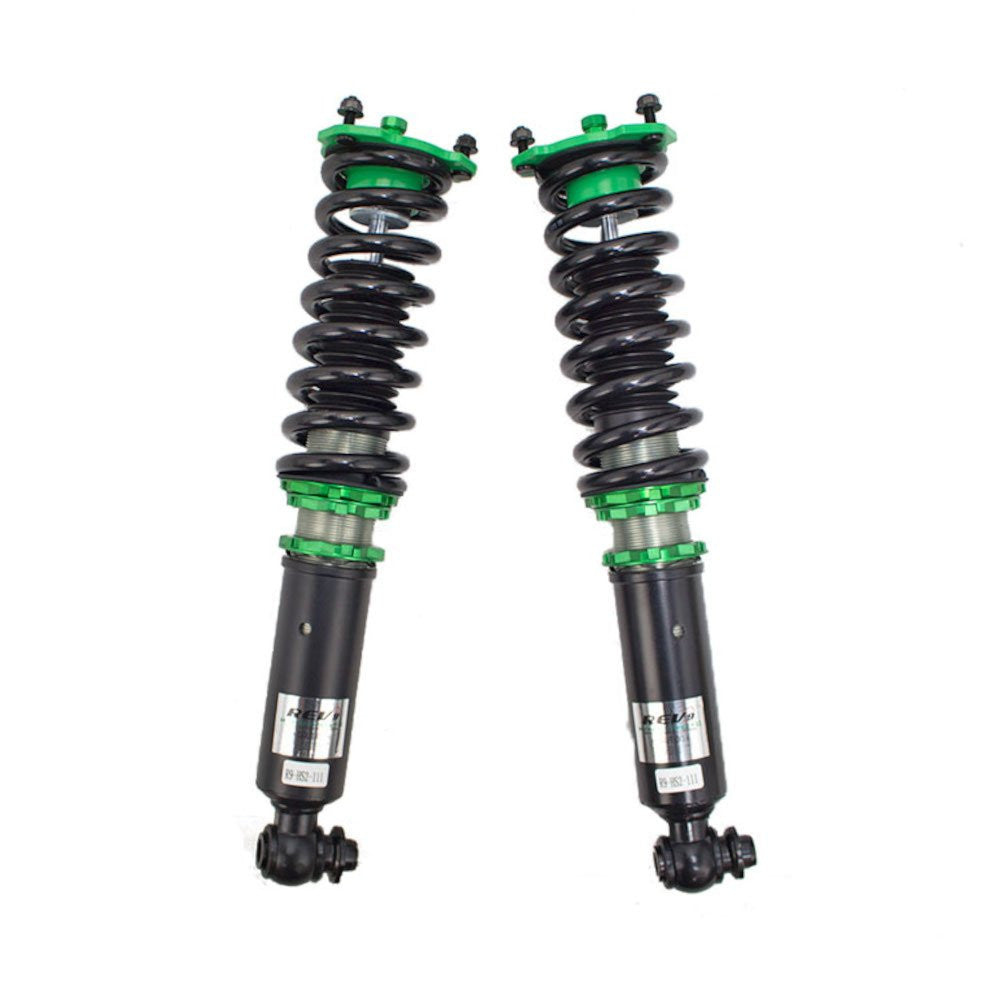

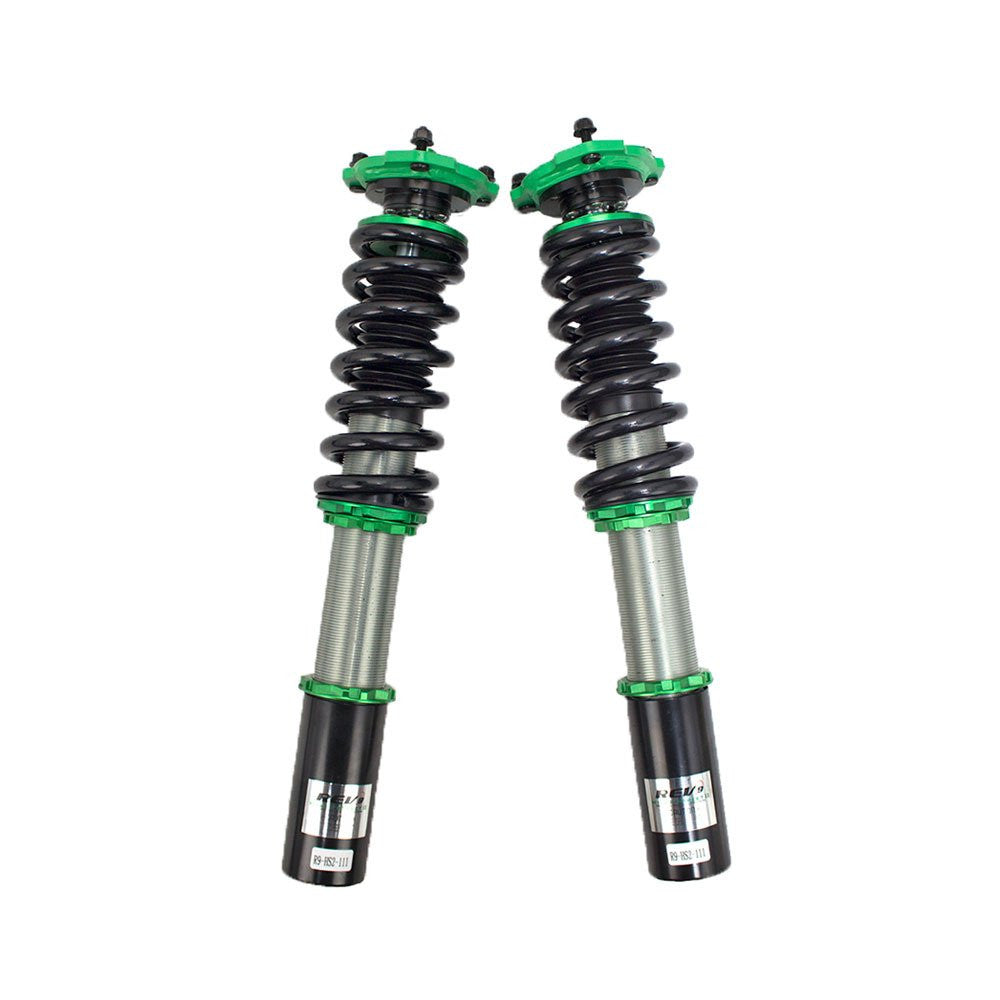

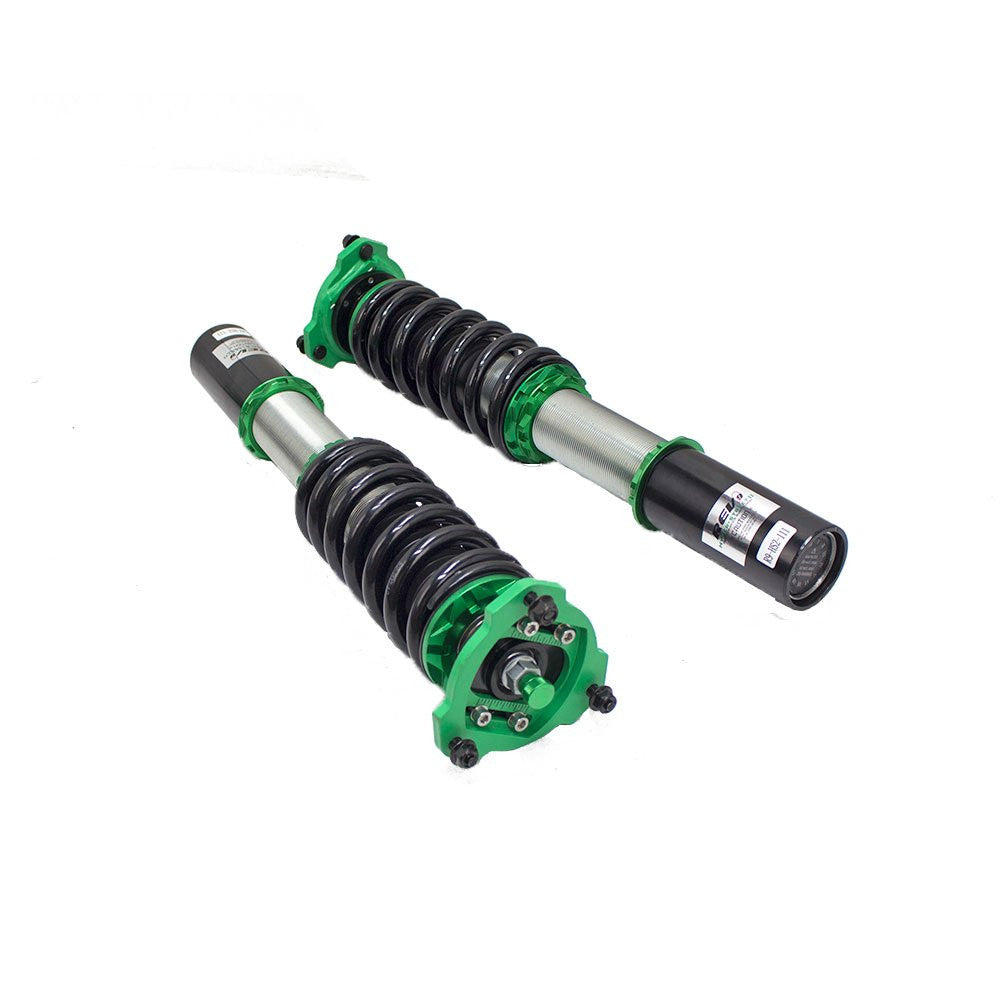

Rev9 Hyper Street II Coilover





Application:
BMW 6-series (E63/E64) , M6 04-10 RWD only

Note: Electronic Suspensions will required reprogramming to turn off service light




Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment
  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height


Damping Levels 32 Levels
Height Adjustment Yes
Spring Rate(Front) 12 kg/mm (672 lbs/inch)
Spring Rate(Rear) 8 kg/mm (448 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 180 mm
Camber Plate(Front) Yes, Pillow Ball w/Camber Plate
Camber Plate(Rear) Yes, Standard type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
