Rev9 Hyper Street II Coilover Shock for *2.0T RWD *FLM Fork Q50 16-19, Q60 17-18

Rev9 Hyper Street II Coilover Shock for *2.0T RWD *FLM Fork Q50 16-19, Q60 17-18

R9-HS2-163

In stock

$753.00 CAD
$753.00 CAD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

New in Box: Rev9 Hyper Street II Coilover

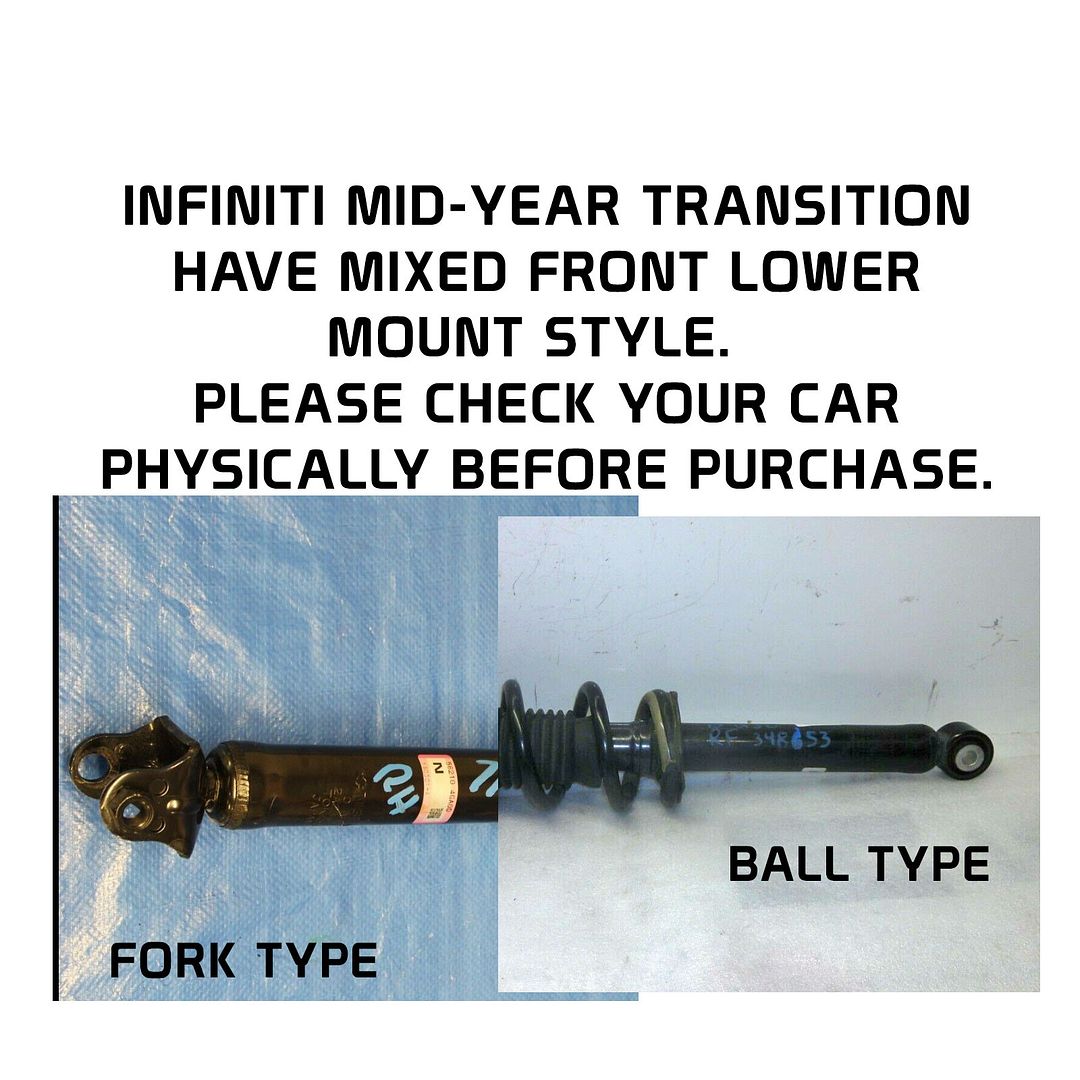

Application: *Fit Ball type front lower mount
Infiniti Q50 16-19 2.0T RWD
Infiniti Q60 17-18 2.0T RWD



Note: Will not fit AWD
Note: it is True coilover design - Rear stock spring has to be remove for installation

Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.

  • Full Steel Alloy Constructions With Aluminum Hardware
  • Mono-Tube Shocks Provide  Larger Capacity of Oil And Gas
  • 32 Clicks of Rebound Force Adjustment
  • Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
  • Independent Spring Tension - Custom Stiffness Without Change Ride Height



Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 12 kg/mm (672 lbs/inch)
Spring Length(Front) 220 mm
Spring Length(Rear) 200 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)

Rev9 Coilover Adjustment Quick Guide:
