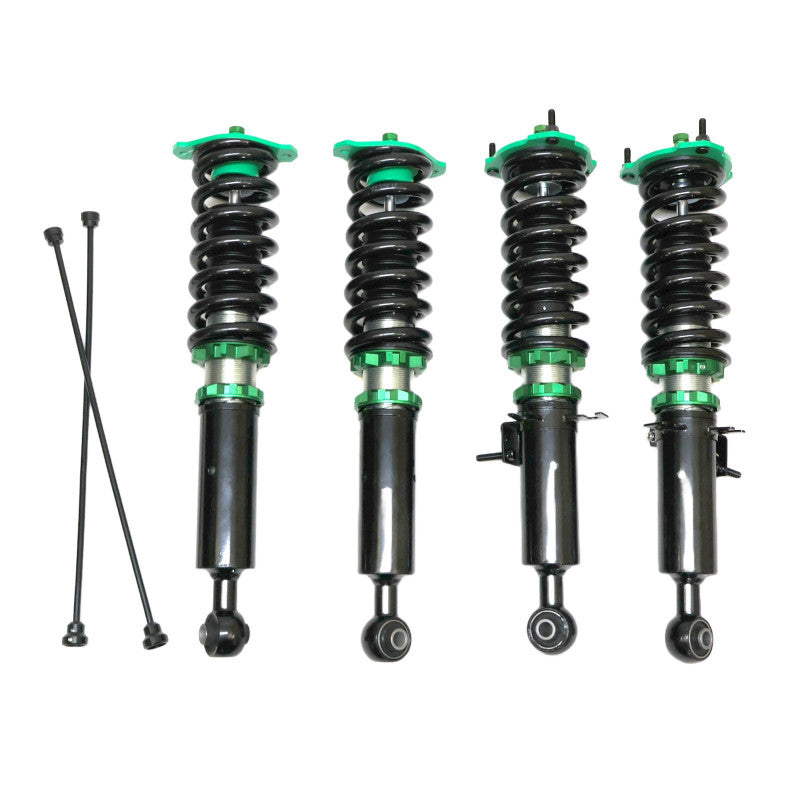

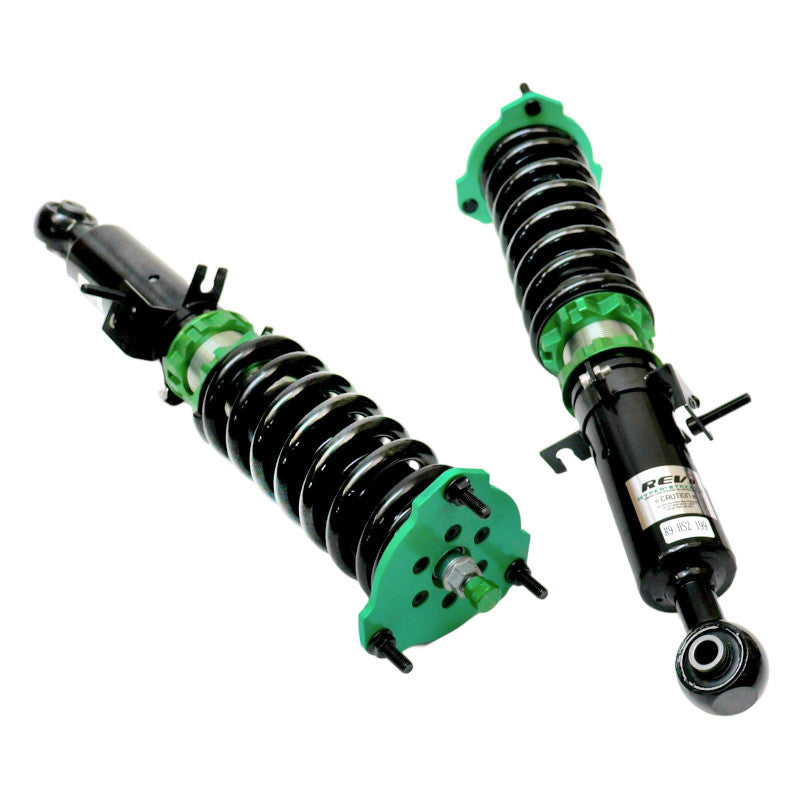

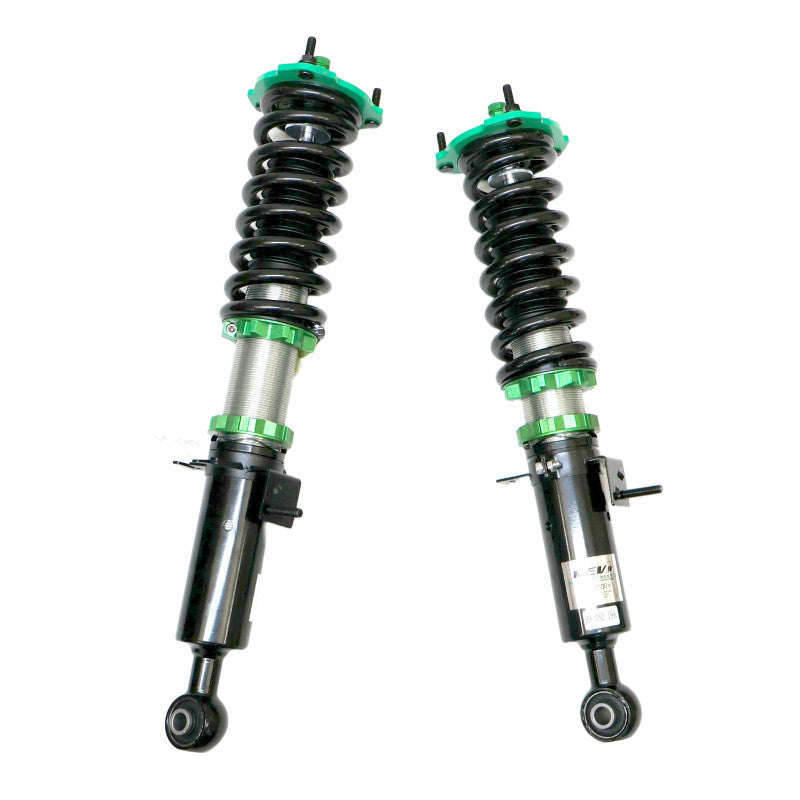

Rev9 Hyper Street II True Coilover Shock for *Convertible* G37 09-13, Q60 14-15
Rev9 Hyper Street II True Coilover Shock for *Convertible* G37 09-13, Q60 14-15
SKU:R9-HS2-210
Out of stock
Couldn't load pickup availability
Rev9 Hyper Street II Coilover
Application:
Infiniti Q60 Convertible V36 14-15
Infiniti G37 Convertible V36 09-13
Note: Will not fit Coupe or Sedan
Note: it is True coilover design - Rear stock spring has to be remove for installation
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
|
Specification |
Front |
Rear |
|
Top Mount |
Yes, Standard Type |
Yes, Standard Type |
|
Spring Rate |
12 kg/mm (672 lbs/inch) |
14 kg/mm (784 lbs/inch) |
|
Spring Length |
200 mm (7.87 inch) |
200 mm (7.87 inch) |
|
Spring Inner Diameter |
62 mm (2.44 inch) |
62 mm (2.44 inch) |
Rev9 Coilover Adjustment Quick Guide:
