• Rev9 - T4 AR70 Turbo Set for 2JZGTE 2JZ-GTE JZA80 JZS147 JZS161
1 1

Rev9

Rev9 - T4 AR70 Turbo Set for 2JZGTE 2JZ-GTE JZA80 JZS147 JZS161

Rev9 - T4 AR70 Turbo Set for 2JZGTE 2JZ-GTE JZA80 JZS147 JZS161

TC-029_MF-050

Out of stock

$787.00 CAD
$926.00 CAD $787.00 CAD
Sale Sold out
Shipping calculated at checkout.

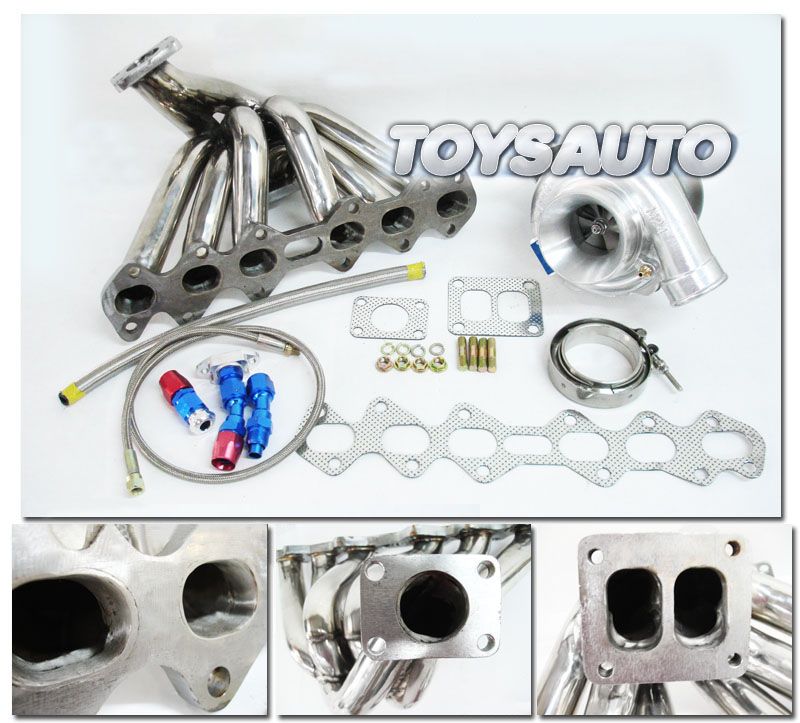

  • Stainless Steel T4 Turbo Manifold (Top mount design) - Manifold, oil line kit, v-band flange kit

  • Made of T-304 stainless steel polished and ported

  • T4 flange with twin-entry design for quicker throttle response

  • Bulid-in 4 Bolt wastegate flange for 40mm/50mm external wastegate

  • Come with 30" long 1/8" NTP oil feed line & 17" long aluminum oil return line and fitting & adapters

  • 3" V-band clamp/flange kit for customer to custom-made/modify downpipe

  • Included hardware and gaskets as shown on picture

FITS: Toyota 2JZGTE MOTOR

  • Aristo JZS147 (Japan-only)
  • Aristo V300 JZS161 (Japan-only)
  • Supra RZ/Turbo JZA80

    Turbo Specification:

    Maximum Horse Power 550-600 HP
    Type of Cooling Oil Cooled
    Inlet Size 4"
    Outlet Size 2.5"
    Type of Bearing WET FLOAT BEARINGS
    Oil inlet Size 1/8 NTP
    Maximum PSI Capacity 33 PSI
    Compressor .70 AR Compressor

    exducer: 72.95mm/ inducer: 57.89mm
    Turbine .68 AR Turbine
    Turbine wheel inducer: 83.16mm/ exducer: 54.47mm
    Type of Flange T4
    Type of Down Pipe Flange 3" V-band
