• Rev9 TX-66-62 Anti Surged TurboCharger Turbo Charger T3 .65 A/R 3" V Band 600hp
1 1

Rev9

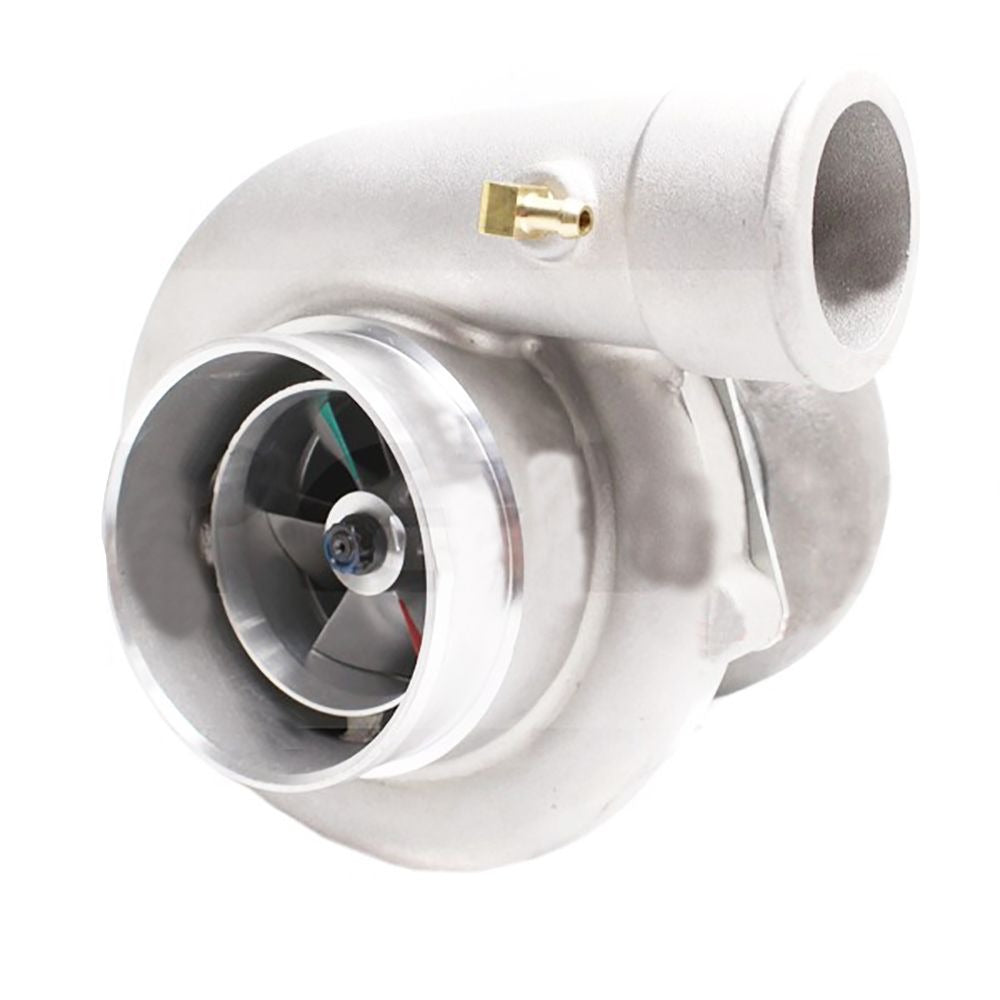

Rev9 TX-66-62 Anti Surged TurboCharger Turbo Charger T3 .65 A/R 3" V Band 600hp

Rev9 TX-66-62 Anti Surged TurboCharger Turbo Charger T3 .65 A/R 3" V Band 600hp

TX-66-62-T3-3V-65

Low stock

$411.00 CAD
$588.00 CAD $411.00 CAD
Sale Sold out
Shipping calculated at checkout.

Brand New Rev9 - TX-66-62 turbo charger 65 a/r

Note: This is not factory/OEM replacement turbo unit, it is for custom turbo setup application

Turbo Specification:

Maximum Horse Power 300-600 HP
Type of Cooling Oil Cooled
Inlet Size 4"
Outlet Size 2.5"
Type of Bearing WET FLOAT BEARINGS
Oil inlet Size 1/8 NTP
Maximum PSI Capacity 30 PSI
Compressor (anti surged 70 series Cover)

exducer: 91mm/ inducer: 65mm
Turbine .65 AR Turbine
Turbine wheel Inducer: 70mm/ Exducer: 62mm
Type of Flange T3
Type of Down Pipe Flange 3" V band
