Godspeed MAXX Coilovers - Toyota C-HR 17-20, UX200 19-20

Godspeed MAXX Coilovers - Toyota C-HR 17-20, UX200 19-20

MMX3910

In stock

$891.00 USD
$1,048.24 USD $891.00 USD
Sale Sold out
Shipping calculated at checkout. Free shipping lower 48 states!

New in Box: Godspeed MAXX Coilover

Application:
Toyota CH-R 17-20
Lexus UX200 19-20

Note: Will not fit Adaptive Variable suspension

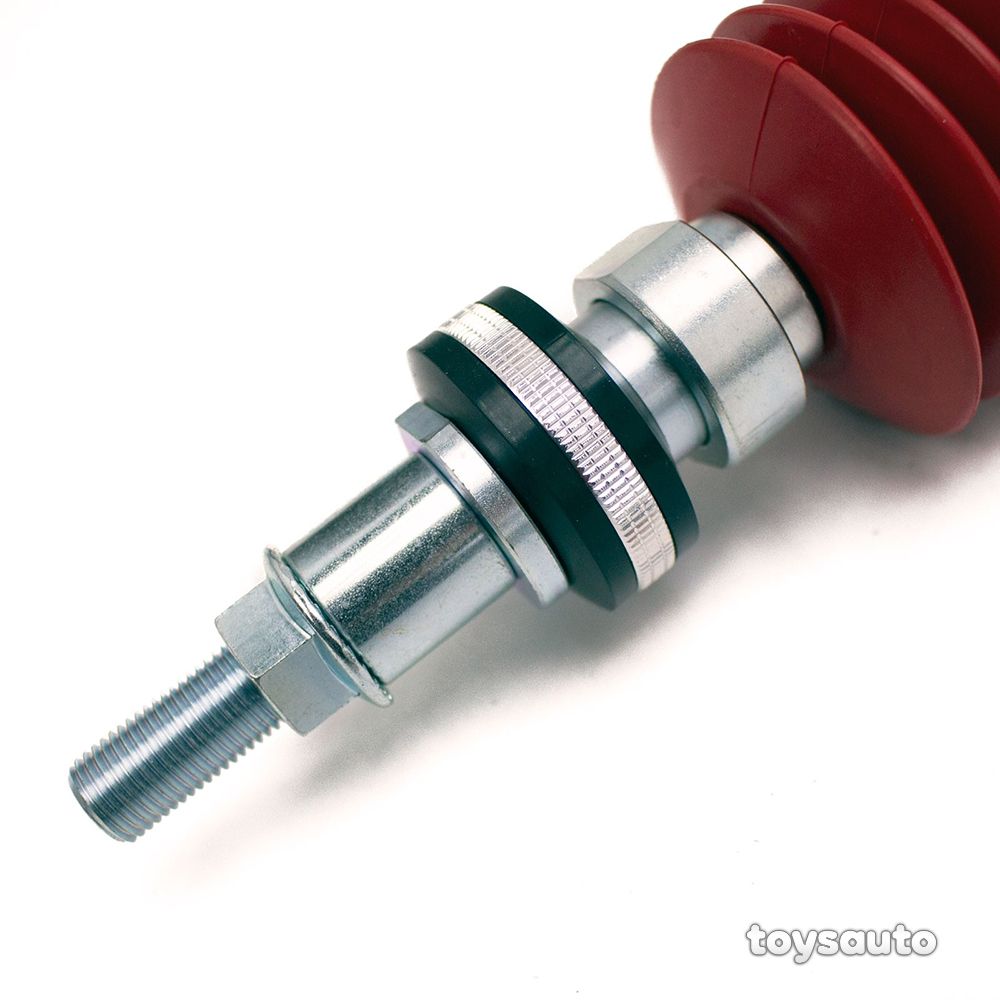

Godspeed Project's MAXX is our premier single-adjustable coilover suspension kit. These coilovers are designed to be a streetable race built coilover at an affordable price. It features a monotube damper that is made out of a carbon seamless steel 52mm tube with a 44mm internal piston providing maximum damper response. The cold-bent springs are made from high strength SAE9252 steel to optimize the balance between performance and comfort. Using high quality shock oil made in Italy, Godspeed Project can guarantee exceptional damper performance at any temperature on and off the track. The top of the shock is attached to the car using a high quality top hat that features a high performance bearing pillow ball mount (when applicable). The bottom shock brackets are made out of a T7075 forged aluminum or carbon steel brackets for lighter weight without sacrificing durability which also includes brake line brackets (when applicable). The MAXX offers 40 level of damper adjustability which can be set to your preference.
SPECIAL NOTES No
DAMPING LEVELS 40 Levels
HEIGHT ADJUSTMENT Yes
SPRING RATE(FRONT) 8 kg/mm (448 lbs/inch)
SPRING RATE(REAR) 4.6 kg/mm (258 lbs/inch)
SPRING LENGTH(FRONT) 200 mm
SPRING LENGTH(REAR) 230 mm
CAMBER PLATE(FRONT) Yes, With Pillow Ball
CAMBER PLATE(REAR) No
SPRING INNER DIAMETER(FRONT) 62 mm (2.44 inch)
SPRING INNER DIAMETER(REAR) 62 mm (2.44 inch)
