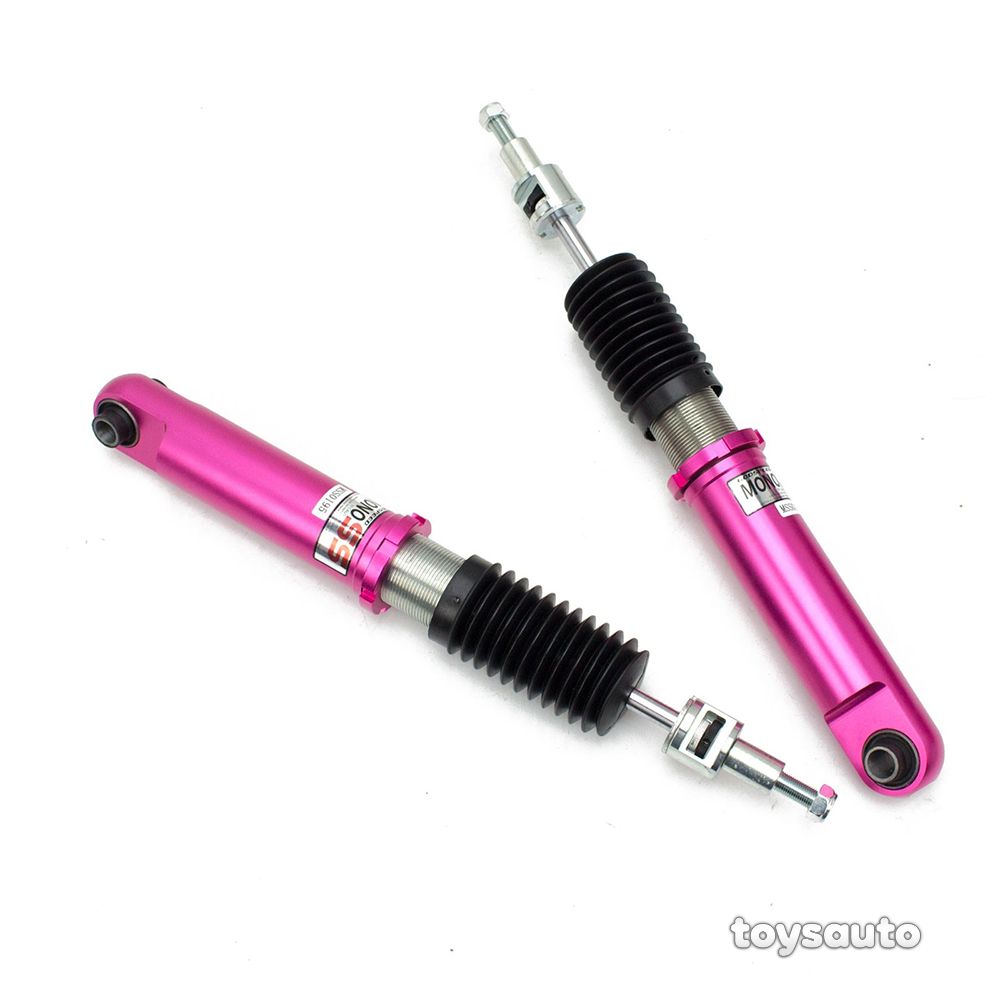

Godspeed MonoSS Coilovers - Toyota CH-R 18-20, UX200 19-20

New in Box: Godspeed MONO-SS Coilover - Lowering only

Application:
Toyota CH-R 18-20
Lexus UX200 19-20

• 52mm Mono-Tube Stainless Steel Shock With 16 Levels of Damping Adjustment Corresponds to Daily Driving Scene To The Sunday Track
• Performance Internal Piston With Koyo Japan 6204z Bearing Provides Smooth Stroke; Powder Coated CNC Machined Aluminum And Carbon Steel Accessories
• Independent Spring Tension And Height Adjustment; Racing Grade Shock Oil With High Viscosity Index; Shock Absorber Can Be Rebuild When Worn Out
• Full 1 Year Limited Warranty From Date Of Purchase; Install By Experienced Professionals Is Highly Recommended


Godspeed Project's MonoSS is our one entity in our family of single-adjustable coilover suspension kits. These coilovers are designed to be a streetable race built coilover at an affordable price. It features a monotube damper that is made out of a carbon seamless steel 52mm tube with a performance internal piston providing maximum damper response. The cold-bent springs are made from high strength SAE9252 steel to optimize the balance between performance and comfort. Using race quality shock oil, Godspeed Project can guarantee exceptional damper performance at any temperature on and off the track. The top of the shock is attached to the car using a high quality top hat that features a high performance Japanese KOYO 6204Z bearing pillow ball mount (when applicable). The bottom shock brackets are made out of a T7075 forged aluminum or carbon steel brackets for lighter weight without sacrificing durability which also includes brake line brackets (when applicable). The MonoSS offers 16 level of damper adjust ability which can be set to your preference.



ADDITIONAL INFORMATION

SPECIAL NOTES	No
DAMPING LEVELS	16 Levels
HEIGHT ADJUSTMENT	Yes
SPRING RATE(FRONT)	6 kg/mm (336 lbs/inch)
SPRING RATE(REAR)	6 kg/mm (336 lbs/inch)
SPRING LENGTH(FRONT)	200 mm
SPRING LENGTH(REAR)	220 mm
CAMBER PLATE(FRONT)	Yes, With Pillow Ball
CAMBER PLATE(REAR)	No
SPRING INNER DIAMETER(FRONT)	62 mm (2.44 inch)
SPRING INNER DIAMETER(REAR)	62 mm (2.44 inch)
