Rev9 - Cast Top T3 AR50 Turbo Set for SR20 SR20det S13 S14 S15
Rev9 - Cast Top T3 AR50 Turbo Set for SR20 SR20det S13 S14 S15
SKU:TC-026_MF-055
Out of stock
Regular price
$499.99 USD
Regular price
$588.22 USD
Sale price
$499.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

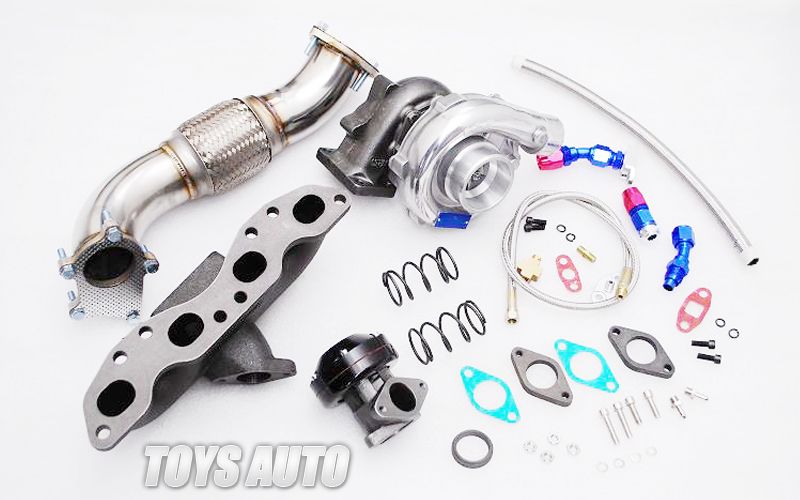

- Cast iron Top mount Turbo manifold featuring equal length design for quicker throttle response
Allow to retain A/C & P/S
3" (76mm) diameter opening design for more air flow output and it can be easy to bolt on stock or aftermarket exhaust, standard 5 bolt downpipe flange for turbine housing
38mm wastegate kit (7 psi spring), 30" stainless oil feed line (3/8" diameter) & 17" aluminum return line (come with adapter for oil pan and fitting)
Turbo Specification:
| Maximum Horse Power | 325-350 HP |
|---|---|
| Type of Cooling | Oil Cooled |
| Inlet Size | 3" |
| Outlet Size | 2" |
| Type of Bearing | WET FLOAT BEARINGS |
| Oil inlet Size | 1/8 NTP |
| Maximum PSI Capacity | 25 PSI |
| Compressor | .50 AR Compressor |
| Compressor wheel | exducer: 76.84mm/ inducer: 50.16mm |
| Turbine | .57 AR Turbine |
| Turbine wheel | Inducer: 65.2mm/ Exducer: 54.06mm |
| Type of Flange | T3 |
| Type of Down Pipe Flange | 5 bolts |
** For Rear Wheel Drive model only**
