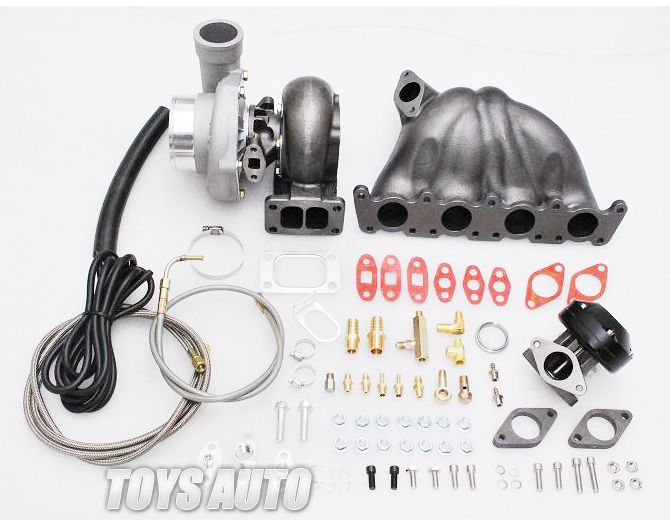

Rev9 - GT35 AR70 .63 Top Turbo Manifold for Passat A4 B5 B6 1.8T Longitudinal
Rev9 - GT35 AR70 .63 Top Turbo Manifold for Passat A4 B5 B6 1.8T Longitudinal
SKU:TC-007_MF-067
Out of stock
Regular price
$579.95 USD
Regular price
$682.29 USD
Sale price
$579.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Cast iron Top mount manifold
38mm wastegate kit (7 psi spring) plus extra 11 and 15 psi spring
- Oil line kit - Oil feed & return with oil fittings
**Note: This is Basic setup - customer need custom downpipe, intercooler kit, blow off valve to complete the turbo setup**
Turbo Specification:
| Maximum Horse Power | 350-500HP |
|---|---|
| Type of Cooling | Oil Cooled |
| Inlet Size | 4" |
| Outlet Size | 2.5" |
| Type of Bearing | WET FLOAT BEARINGS |
| Maximum PSI Capacity | 25 PSI |
| Compressor | .70 AR Compressor |
| Compressor Wheel | Exducer: 81.87mm , Inducer: 57.36mm |
| Turbine | .63 AR Turbine |
| Turbine Wheel | exducer: 57.5mm , Inducer: 73.6mm |
| Type of Flange | T3 |
| Type of Down Pipe Flange | 4 Bolt type |
FITS: Audi A4 B5/B6 96-04 /VW Passat 98-04 with 1.8t engine
