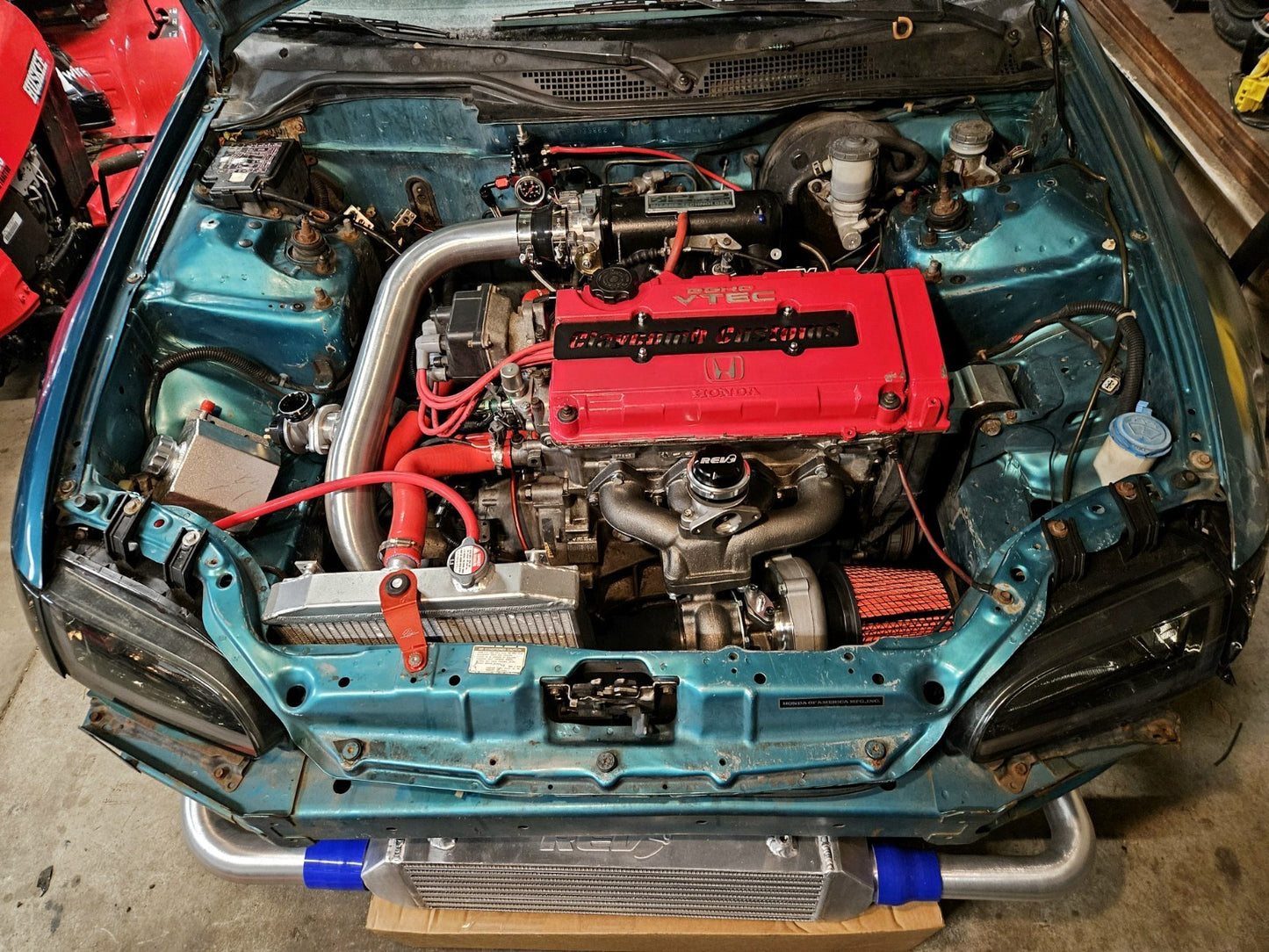

Rev9 Honda B16 B18 Engine Motor T3T4 Turbocharger Kit (Civic CRX Integra, Del Sol)

For Honda B16 B18 Engine Motor T3T4 Turbocharger Kit

B16 B18 DOHC VTEC Motor Turbocharger Kit

Compatibility:

• Honda B-Series Engine Motor B16 B18

Kit Includes:

• TX-50E-57 .63 A/R Turbocharger
• Intercooler 27x6.5x3 (Direct Bolt-On)
• 2.25" Aluminized Mandrel Bent Piping (Total of 4)
• High Pressure Silicon Hose (Total of 6)
• Clamps (Total of 21)
• Cast Iron Turbo Manifold
• 2.5" Stainless Steel Down pipe
• Stainless Steel Connect Pipe
• Stainless Steel Dump Pipe
• Blow Off Valve (5/20/22 The BOV that comes with this kit is now 2 bolt flange ones. Color varies.(See pic 3) The IC piping also has a 2 bolt flange that matches.)
• 38mm Wastegate (Set at 5PSI) Comes With Extra 10 PSI Spring In Order To Make 15 PSI Maximum Setting.
• Valve Set for Wastegate
• Gasket Kit for Wastegate
• Steel Braided Oil Feed Line
• Oil Return Line
• Oil Pan Fitting
• Necessary Vacuum Tees
• Necessary Vacuum Lines
• Necessary Gaskets and Bolts
• Necessary Hardware
• Air Filter Color May Vary

Specifications:

TX-50E Turbocharger .63 AR

Compressor Inlet: 3.00"
Compressor Outlet: 2.00"
Compressor Cover: TX-50E Cover
Compressor Wheel Diameter: 53mm / 75mm
Turbine Wheel Diameter: 57mm / 65mm
Exhaust Trim: .63 AR
Turbine Flange Type: T3 Flange
Downpipe Flange Type: 5-Bolt Standard Type
Cooling Type: Oil Cooled Only
Horsepower Rating: 200-400 HP+
