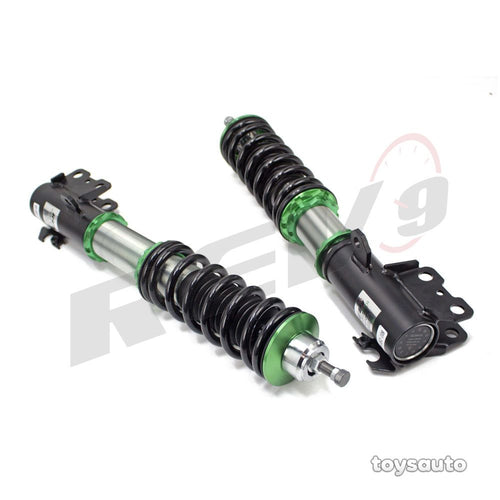

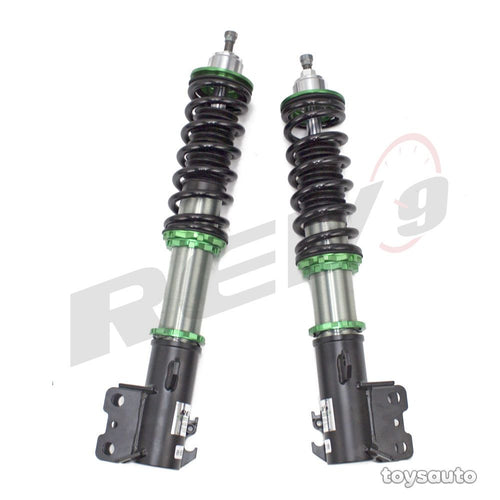

Rev9 Hyper Street II Coilover 32way xD 08-14, Yaris HB 13-19, Prius C 12-19
New in Box: Rev9 Hyper Street II Coilover
Application:
Scion xD (XP110) 08-14
Toyota Yaris Hatchback only (XP130/XP150) 13-19
Toyota Prius C (NHP10) 12-19
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
| Damping Levels | 32 Levels |
|---|---|
| Height Adjustment | Yes |
| Spring Rate(Front) | 5 kg/mm (280 lbs/inch) |
| Spring Rate(Rear) | 3 kg/mm (168 lbs/inch) |
| Spring Length(Front) | 190 mm |
| Spring Length(Rear) | 220 mm |
| Camber Plate(Front) | No |
| Camber Plate(Rear) | No |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
Rev9 Coilover Adjustment Quick Guide:
