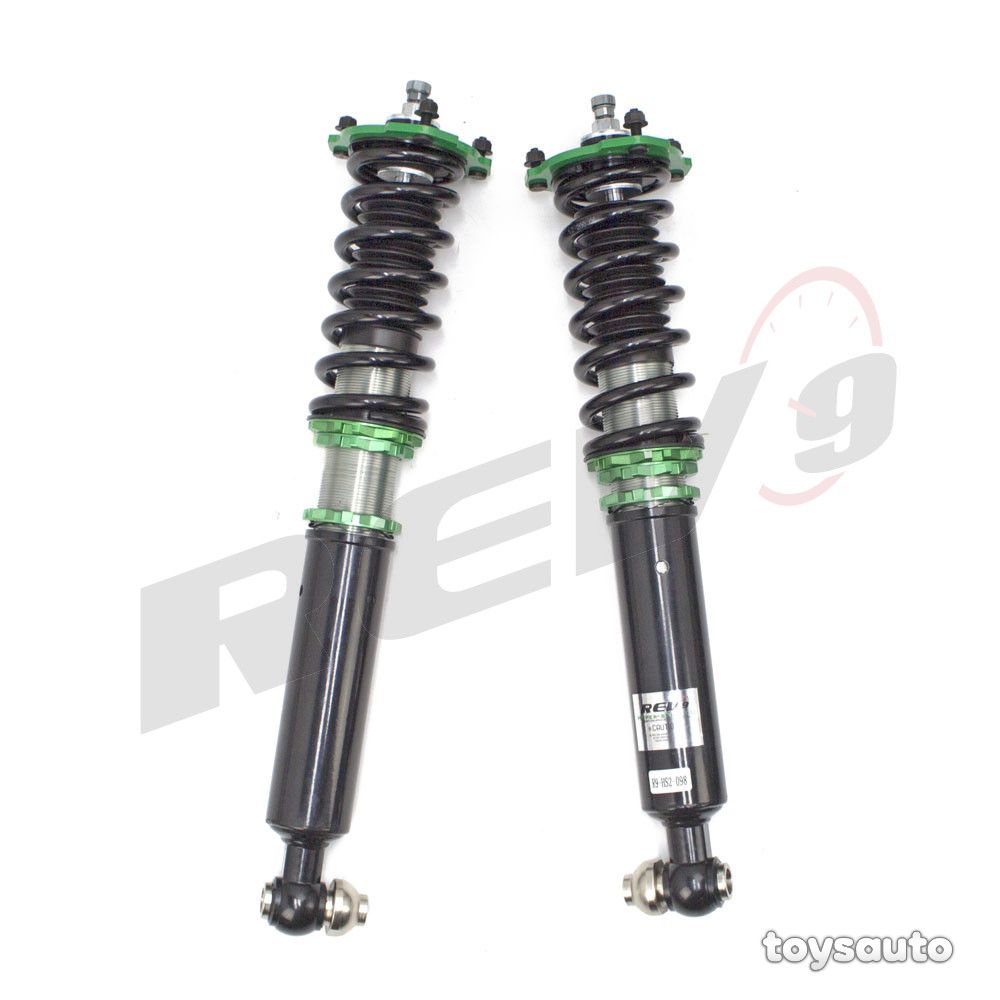

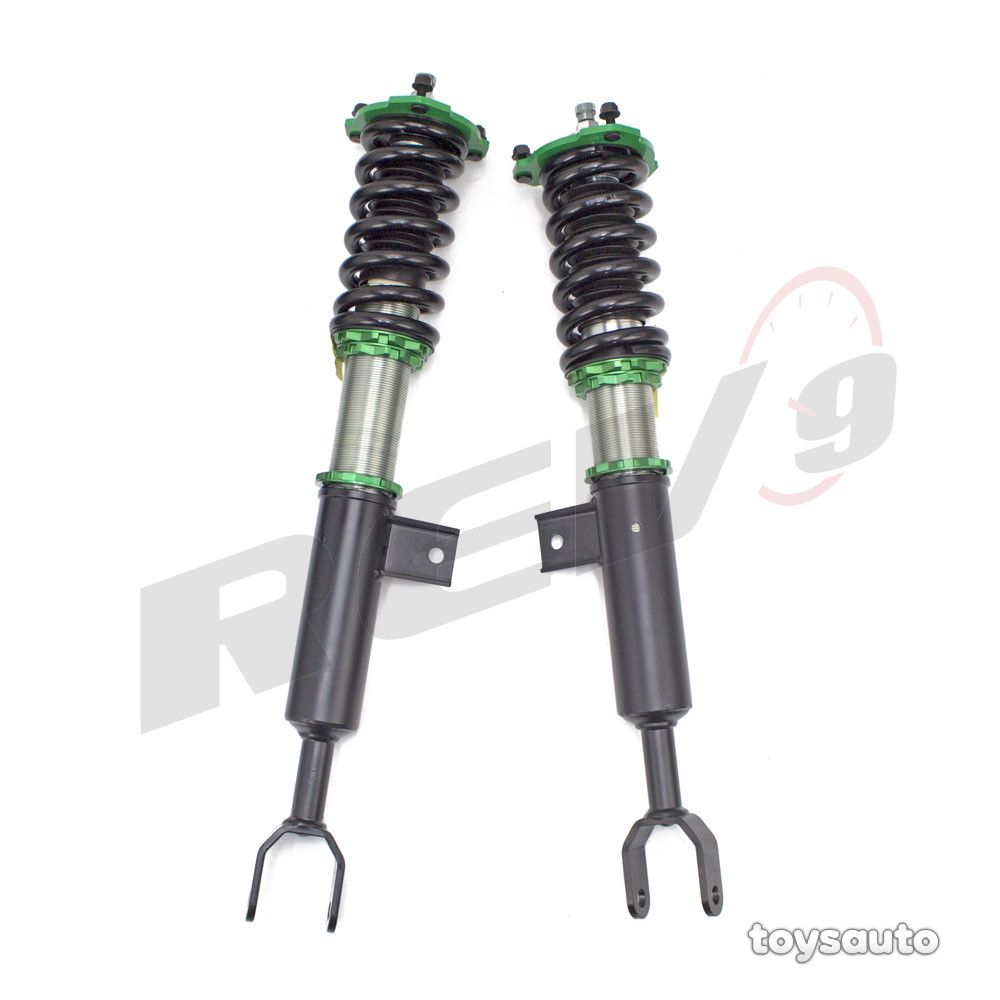

Rev9 Hyper Street II Coilover BMW F10 528i 530i 535i 550i RWD 11-16 w/o EDC
Rev9 Hyper Street II Coilover BMW F10 528i 530i 535i 550i RWD 11-16 w/o EDC
SKU:R9-HS2-098
In stock
Regular price
$532.00 USD
Regular price
$760.00 USD
Sale price
$532.00 USD
Unit price
/
per
Shipping calculated at checkout.
Free shipping lower 48 states!
Couldn't load pickup availability
New in Box: Rev9 Hyper Street II Coilover
Application:
BMW 5-Series (F10) RWD 11-16
Note: Will not fit Electronic controlled damper
Note: Will not fit Air suspension
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
Damping Levels | 32 Levels |
---|---|
Height Adjustment | Yes |
Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
Spring Rate(Rear) | 6 kg/mm (336 lbs/inch) |
Spring Length(Front) | 180 mm |
Spring Length(Rear) | 200 mm |
Camber Plate(Front) | No |
Camber Plate(Rear) | No |
Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
Rev9 Coilover Adjustment Quick Guide:
