Rev9 Hyper Street II Coilover *FLM Fork GS200t GS300 GS350 GS450h *RWD 13-20
Rev9 Hyper Street II Coilover *FLM Fork GS200t GS300 GS350 GS450h *RWD 13-20
SKU:R9-HS2-154
In stock
Regular price
$532.00 USD
Regular price
Sale price
$532.00 USD
Unit price
/
per
Shipping calculated at checkout.
Free shipping lower 48 states!
Couldn't load pickup availability
New in Box: Rev9 Hyper Street II Coilover
Application:

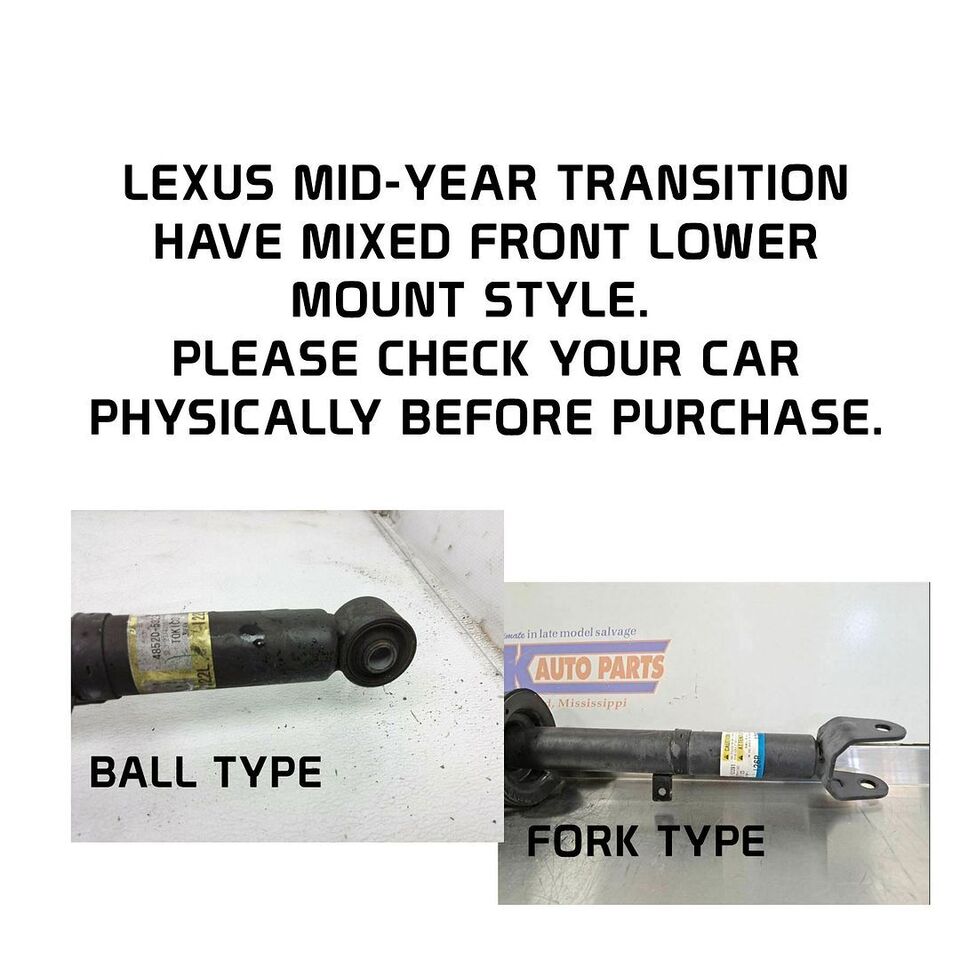

Lexus GS200t/GS300/GS350/GS450h RWD *Front Lower mount - Fork type only*
Note: will not fit AVS - Adaptive Variable Suspension
Note: Will not fit AWD model
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
| Damping Levels | 32 Levels |
|---|---|
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 11 kg/mm (616 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 210 mm |
| Front Top Mount | Yes |
| Rear Top Mount | Yes |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62-72 mm (2.44-2.83 inch) |
Rev9 Coilover Adjustment Quick Guide:
