Rev9 Hyper Street II Coilover Camry 12-17 *SE XSE*, ES350 13-18
Rev9 Hyper Street II Coilover Camry 12-17 *SE XSE*, ES350 13-18
SKU:R9-HS2-130
In stock
Regular price
$532.00 USD
Regular price
Sale price
$532.00 USD
Unit price
/
per
Shipping calculated at checkout.
Free shipping lower 48 states!
Couldn't load pickup availability

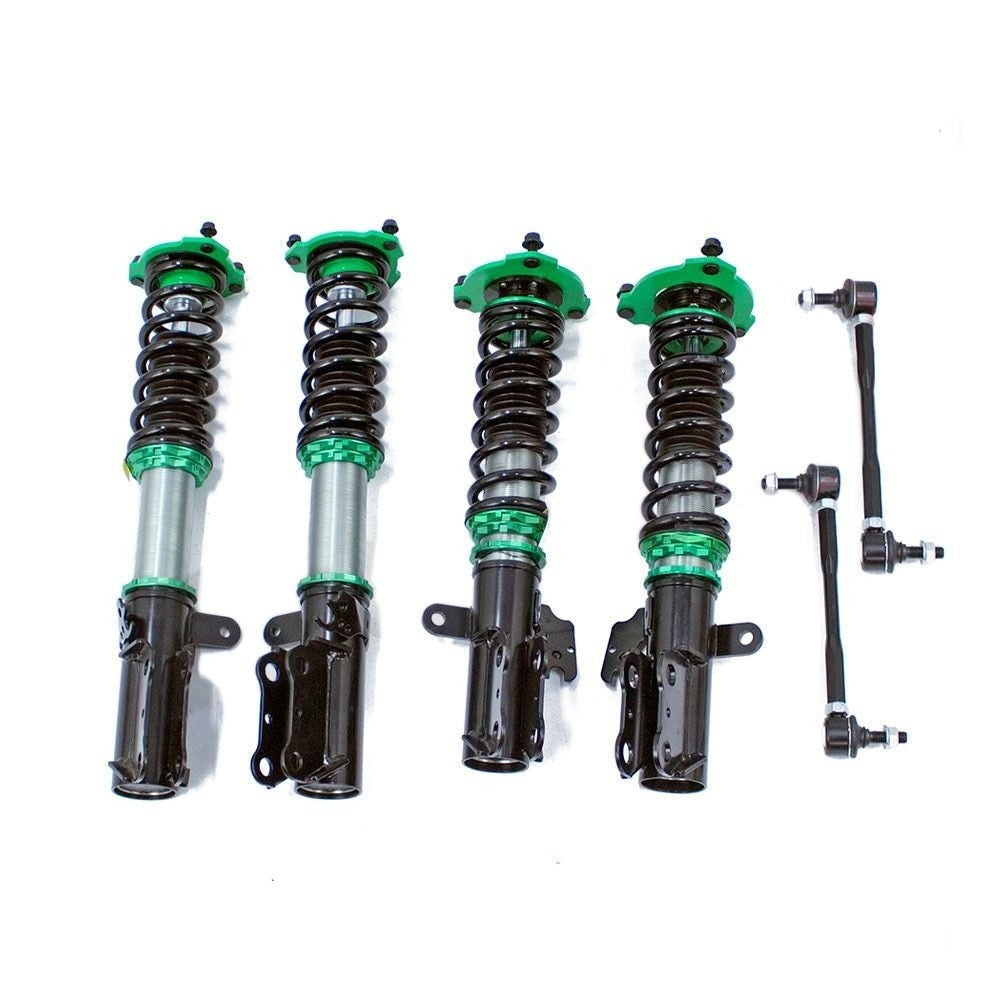

New in Box: Rev9 Hyper Street II Coilover
Application:
Toyota Camry 12-17, SE/XSE
Toyota Avalon 13-18 3.5L limited / Touring
Lexus ES350 13-18
Note: Will not fit
Camry L/LE/XLE/Hybrid
Avalon Hybrid / XLE / XSE
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
| Damping Levels | 32 Levels |
|---|---|
| Height Adjustment | Yes |
| Spring Rate(Front) | 6 kg/mm (336 lbs/inch) |
| Spring Rate(Rear) | 6 kg/mm (336 lbs/inch) |
| Spring Length(Front) | 200 mm |
| Spring Length(Rear) | 200 mm |
| Camber Plate(Front) | Yes, With Pillow Ball |
| Camber Plate(Rear) | No |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
Rev9 Coilover Adjustment Quick Guide:
