Rev9 Hyper Street II Coilover Matrix Corolla Vibe 03-08 *FWD*
Rev9 Hyper Street II Coilover Matrix Corolla Vibe 03-08 *FWD*
SKU:R9-HS2-066
In stock
Regular price
$532.00 USD
Regular price
$625.88 USD
Sale price
$532.00 USD
Unit price
/
per
Shipping calculated at checkout.
Free shipping lower 48 states!
Couldn't load pickup availability

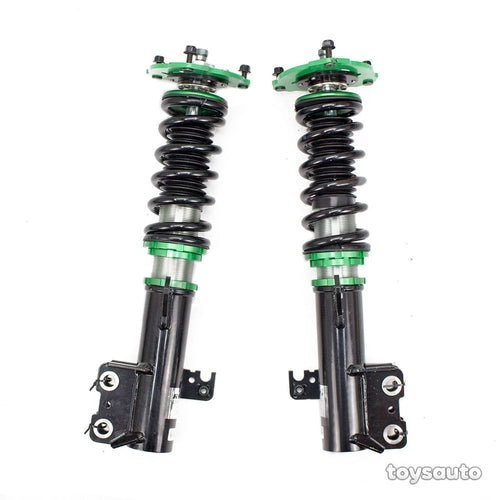

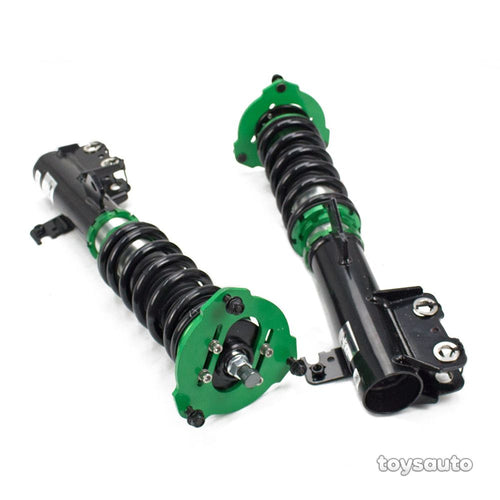

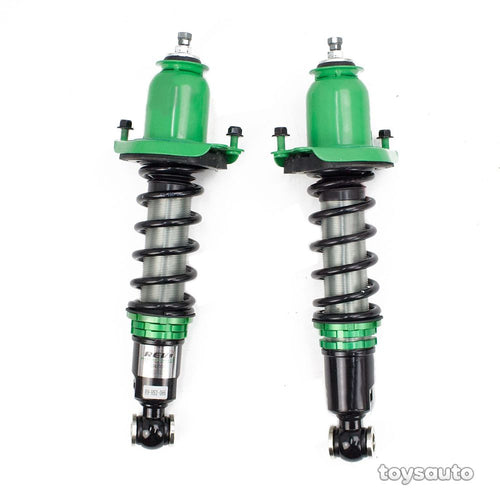

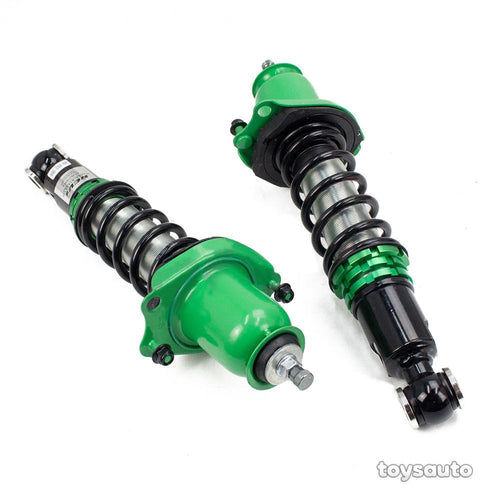

New in Box: Rev9 Hyper Street II Coilover
Application:
Toyota Corolla 03-08 FWD
Toyota Matrix 03-08 FWD
Pontiac Vibe 03-08 FWD
Note: Will not fit AWD
Note: Will not fit model with Rear independent Suspension Type
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
Damping Levels | 32 Levels |
---|---|
Height Adjustment | Yes |
Spring Rate(Front) | 8 kg/mm |
Spring Rate(Rear) | 4 kg/mm |
Spring Length(Front) | 180 mm |
Spring Length(Rear) | 180 mm |
Camber Plate(Front) | Yes, With Pillow Ball |
Camber Plate(Rear) | No |
Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
Rev9 Coilover Adjustment Quick Guide:
