Rev9 Hyper Street II Coilover *RWD* 300 05-10, Magnum 05-08
Rev9 Hyper Street II Coilover *RWD* 300 05-10, Magnum 05-08
SKU:R9-HS2-142
83 in stock
Regular price
$532.00 USD
Regular price
Sale price
$532.00 USD
Unit price
/
per
Shipping calculated at checkout.
Free shipping lower 48 states!
Couldn't load pickup availability

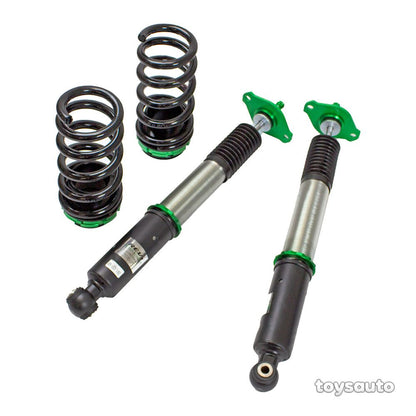

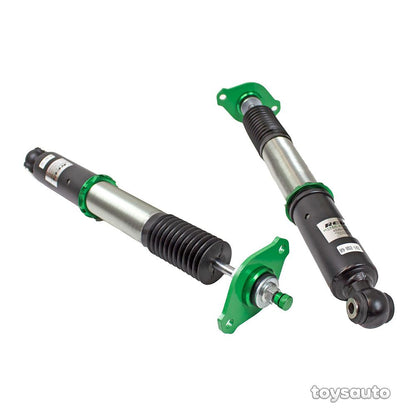

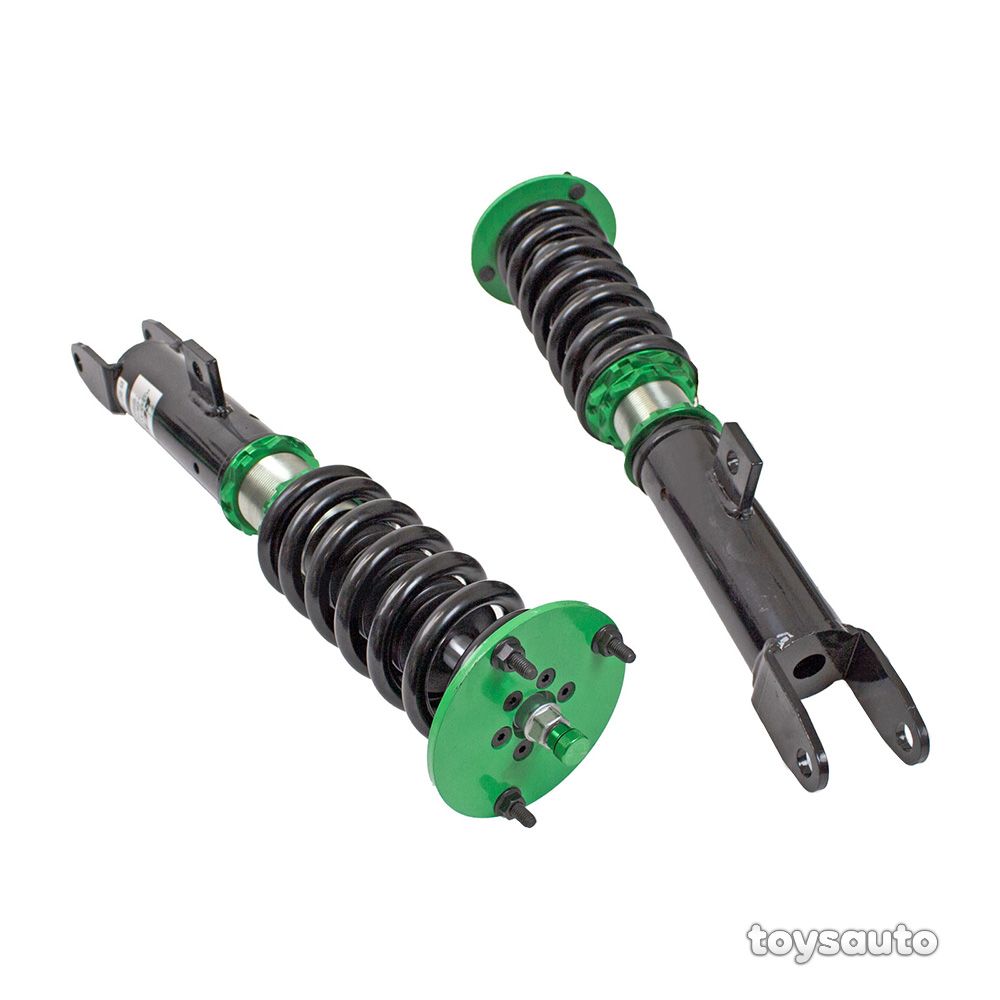

New in Box: Rev9 Hyper Street II Coilover
Application:
Chrysler 300 RWD 05-10
Dodge Charger RWD 05-10
Dodge Challenger RWD 08-10
Dodge Magnum RWD 05-08
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks ProvideĀ Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
| Damping Levels | 32 Levels |
|---|---|
| Height Adjustment | Yes |
| Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
| Spring Rate(Rear) | 14 kg/mm (784 lbs/inch) |
| Spring Length(Front) | 200 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | No |
| Rear Top Mount | No, Reuse Factory Top |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 72-80 mm (2.83-3.15 inch) |
Rev9 Coilover Adjustment Quick Guide:
