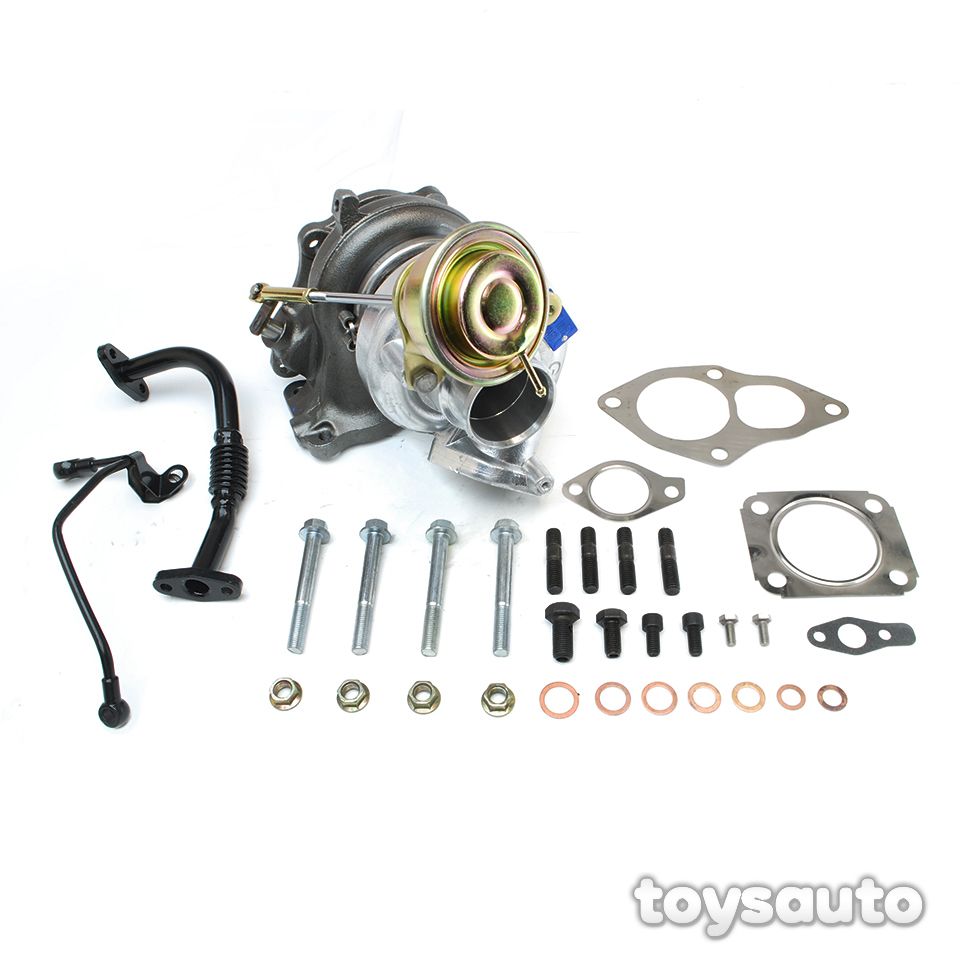

Rev9 TD05 EVO 3 16G Turbo Charger Turbocharger + J Pipe for Eclipse Talon 95-99
Rev9 TD05 EVO 3 16G Turbo Charger Turbocharger + J Pipe for Eclipse Talon 95-99
SKU:AC-100_TC-003
Out of stock
Regular price
$299.95 USD
Regular price
$352.88 USD
Sale price
$299.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Brand New TD05H 16G Turbo Charger AR49 (Actuator 0.8 Bar)
The 16G compressor and TD05H turbine wheel has been ported and bigger internal wastegaste can be supports up to 350HP and deliver 580 CFM. And, it is a replacement of 14B turbo. This turbo set up will work with stock fuel system which provide 450cc injectors that will be sufficient for this turbo. Although it is recommend to upgrade to a Fuel pump such as a Walbro 255, standard pressure.
Fit model with 4G63 2.0L motor
- 90-94, 95-99 Mitsubishi Eclipse all model with 4G63 2.0L
- 91-92 Mitsubishi Galant VR-4 with 4G63 2.0L
- 90-94, 95-97 Eagle Talon modle with 4G63 2.0L
Come with J-pipe, oil line and mounting bracket for direct bolt on 95-99 Eclipse and 95-97 Talon
**modification needed on J-pipe on other model**
Turbo Specification:
| Maximum Horse Power | 350 HP (Deliver 580 CFM) |
|---|---|
| Turbo inlet (intake) | 2.25" |
| Type of Bearing | Journal BEARINGS |
| Type of Wastegate | Internal Wastegate (default 13 PSI) |
| Compressor | .49 AR Compressor |
| Compressor Wheel | 48.3mm/67.9mm Diameter |
| Turbine Wheel | 49.2mm/56mm Diameter |
