Rev9 - Top T3 T67 Turbo Set for RB25det RB20det S13 S14 R32 R33
Rev9 - Top T3 T67 Turbo Set for RB25det RB20det S13 S14 R32 R33
SKU:TC-021_MF-048
Out of stock
Regular price
$569.95 USD
Regular price
$670.53 USD
Sale price
$569.95 USD
Unit price
/
per

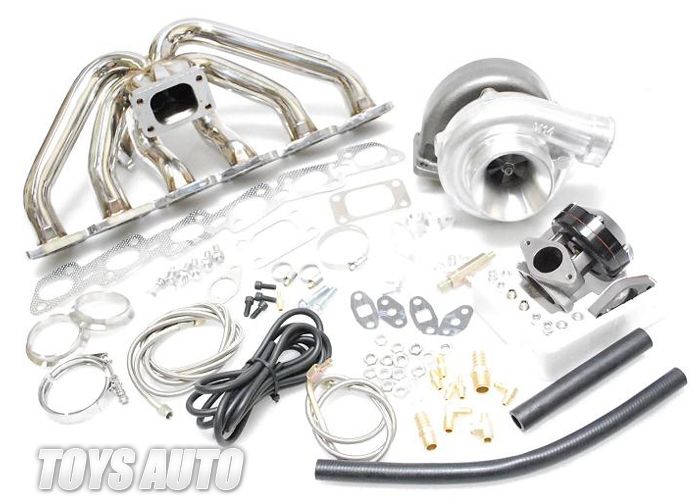

High quality Stainless steel TOP-MOUNT Turbo set - T3 (T67) AR70 .84 turbo, manifold, oil line kit, 38mm wastegate, donwpipe flange
Top mount design allow larger compressor housing for the turbo setup
Manifold - Made of T-304 stainless steel polished and ported for quicker throttle response
38mm external wastegate with (7/11/15 psi spring) & 2.5" V-BAND downpipe flange kit
- oil line kit - oil feed/drain line & fitting, adapters
- Included hardware and gaskets
- customer may need to shave/trim the eninge cover in order to avoid hitting the compressor housing
Turbo Specification:
Maximum Horse Power | 550-600 HP |
---|---|
Type of Cooling | Oil Cooled |
Inlet Size | 4" |
Outlet Size | 2.5" |
Type of Bearing | WET FLOAT BEARINGS |
Maximum PSI Capactiy | 35 PSI |
Oil Inlet size | 1/8 NPT |
Compressor | .70 AR Compressor exducer: 72.95mm, inducer: 57.89mm |
Turbine | .84 AR Turbine |
Turbine wheel | Inducer: 83.16mm, Exducer: 54.47mm |
Type of Flange | T3 with Twin Entry |
Type of Down Pipe Flange | 2.5" V-Band |
FITS: NISSAN Skyline or 240SX S13/S14 with RB20DET/RB25DET
**Don't fit on NEO6**
